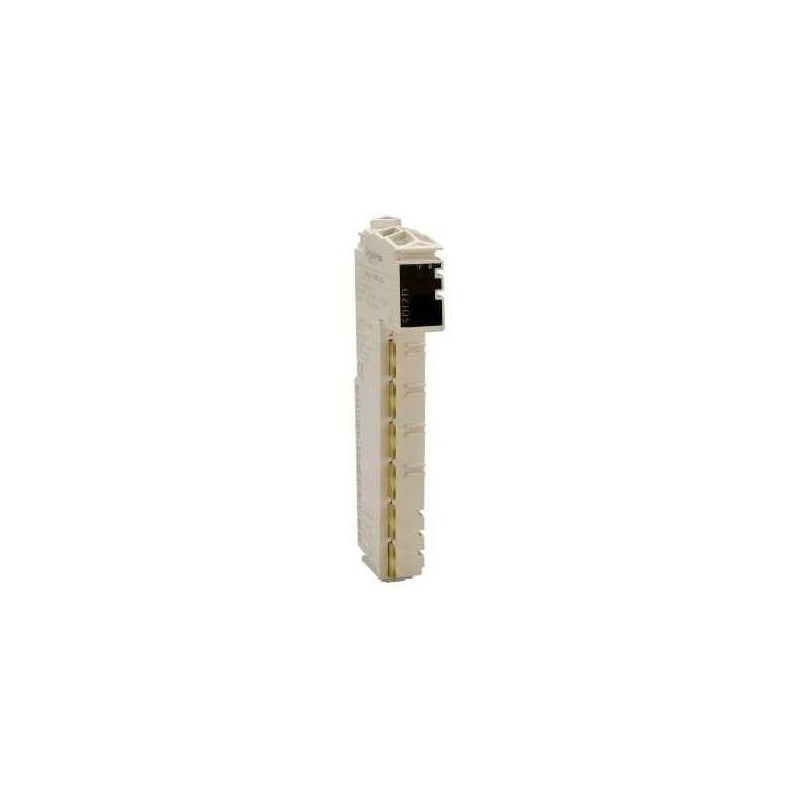

Schneider Electric TM5SDI12DK | Industrial Automation Component

TM5SDI12DK Schneider Electric - Modicon TM5 Discrete Input Kit, 12 DI, 24V DC, Sink, 1-Wire (Module + Bus Base + Terminal Block). Composition kit for Modicon TM5 system including TM5SDI12D I/O module, TM5ACBM11 bus base, and TM5ACTB12 terminal block. Provides 12 discrete inputs with sink logic at 24V DC. Features 1-wire connection and LED status indicators for all channels. Designed for flexible and scalable I/O configuration in automation solutions.

• Brand: Schneider Electric
• Category: Discrete Input Module Kit
• Product Type: Discrete Input Module Kit
• Range of Product: Modicon TM5
• Kit Contents: TM5SDI12D module + TM5ACBM11 bus base + TM5ACTB12 terminal block
• Discrete Input Number: 12
• Discrete Input Voltage: 24 V DC
• Input Voltage Limits: 20.4...28.8 V
• Discrete Input Logic: Sink
• Discrete Input Current: 3.75 mA
• Input Impedance: 6.4 kOhm
• Voltage State 0 Guaranteed: <= 5 V
• Voltage State 1 Guaranteed: >= 15 V
• Input Filtering: <= 25 ms configurable, <= 100 ms hardware
• Isolation: 500 Vrms AC (channel to bus), no insulation between channels
• Current Consumption: 36 mA at 5V DC bus, 73 mA at 24V DC (all inputs On)
• Maximum Power Dissipation: 1.93 W
• Local Signalling: 1 LED green + 1 LED red (power), 12 LEDs green (input status)
• Electrical Connection: 1 wire
• Net Weight: 0.065 kg
• Colour: White
• Operating Temperature: 0...55°C (no derating, horizontal), 0...60°C (derating, horizontal), 0...50°C (vertical)
• Storage Temperature: -25...70°C
• IP Degree of Protection: IP20
• Operating Altitude: 0...2000 m
• Country of Origin: Austria
• Range Compatibility: Modicon LMC058, Modicon M258
• Certifications: CSA, C-Tick, GOST-R, cULus
• Standards: IEC 61131-2, UL 508, CSA C22.2 No 142, CSA C22.2 No 213
• Warranty: 18 months

Provides 12-channel digital input expansion for Modicon TM5 automation systems in packaging, material working, material handling, and machine control applications, enabling flexible and scalable remote I/O configurations.
