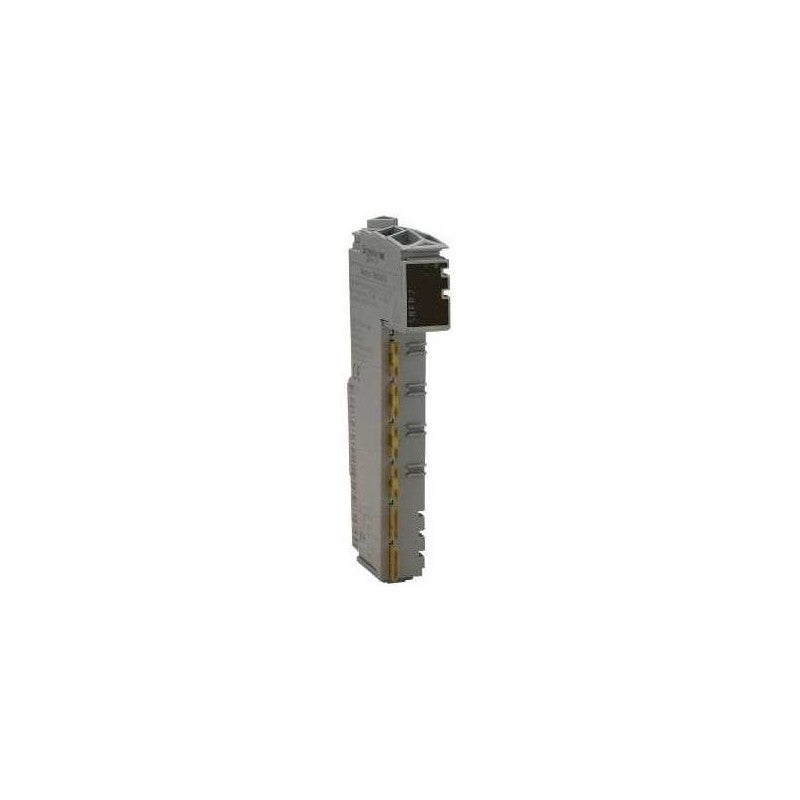

Schneider Electric TM5SBER2 | Industrial Automation Component

TM5SBER2 Schneider Electric - Schneider Electric TM5SBER2 Bus Expansion Receiver Module. Modicon TM5 bus expansion receiver module for remote I/O communication, 24 VDC, with integrated fuse, designed for Modicon M258 PLC systems.

• Brand: Schneider Electric
• Category: Bus Expansion Module
• Product Type: Bus Expansion Receiver Module
• Series: Modicon TM5 / M258
• Rated Supply Voltage: 24 VDC
• Supply Voltage Range: 20.4...28.8 VDC
• Max Input Current: 0.7 A at 24 VDC
• Max Current (24VDC I/O Segment): 25 mA
• Generated Current: 1156 mA (-10...55°C), 756 mA (55...60°C)
• Max Power Consumption: 2.22 W
• Internal Fuse: Yes (integrated, non-replaceable)
• Reverse Polarity Protection: Yes
• Parallel Operation: Yes (75% rated power)
• Terminal Type: Removable spring terminals
• Mounting Type: DIN Rail
• Weight: 25 g (0.9 oz)
• Operating Temperature: 0 to 60°C
• Protection Rating: IP20
• Green Premium: Yes
• Certifications: CE, CSA, cULus, C-Tick, GOST, UL

Bus expansion for remote I/O communication between TM5 modules in Modicon M258 PLC systems, simplifying wiring and maintenance.
