Schneider Electric TM3SAFL5RG | Industrial Automation Component

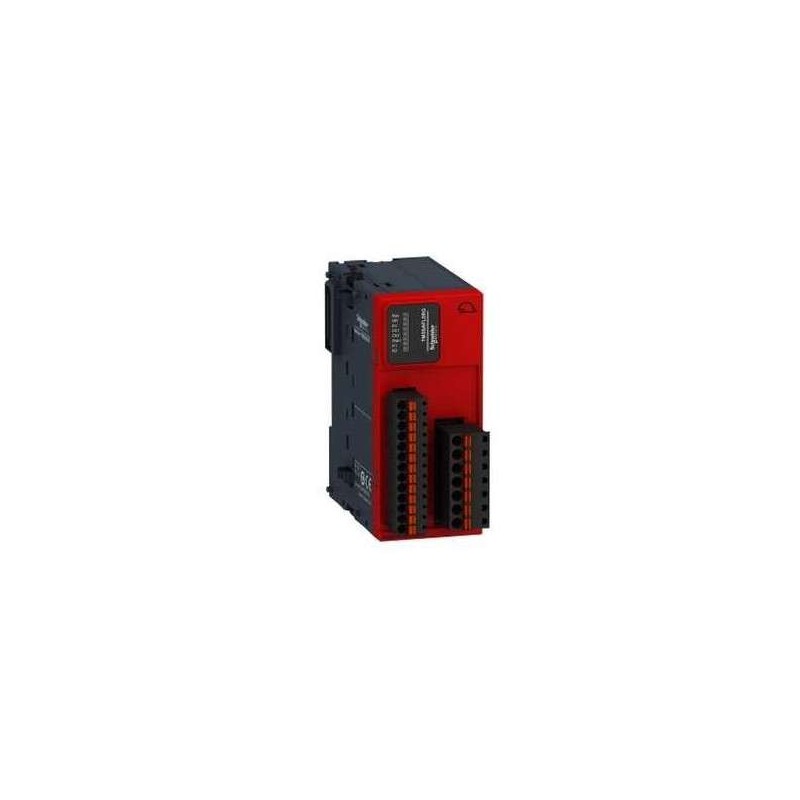

TM3SAFL5RG Schneider Electric - Modicon TM3 Safety Module, 2 Functions, Cat 3 PL d/SIL CL2, Spring Terminals, 24V DC. Safety module for Modicon TM3 expansion system with 2 monitoring functions and maximum safety category 3. Features spring terminals for fast and reliable wiring of safety circuits. Provides 2 safety-related inputs and 3 relay NO outputs. Designed for use with Modicon M221, M241, M251, and M262 logic controllers.

• Brand: Schneider Electric
• Category: Safety Module
• Product Type: Safety Module
• Range of Product: Modicon TM3
• Number of Functions: 2
• Maximum Safety Category: Category 3 (EN/ISO 13849-1)
• Performance Level: PL d (EN/ISO 13849-1)
• SIL: SIL CL2 (EN/IEC 62061)
• Safety-Related Inputs: 2 (depends on external wiring)
• Input Voltage: 24 V DC
• Input Current: 100 mA maximum
• Relay Outputs: 3 (parallel), NO (normally open)
• Output Voltage: 24 Vac / 230 Vdc
• Maximum Output Current: 6 A per output
• Terminal Type: Pluggable spring terminals (3.81 mm and 5.08 mm pitch)
• For Use With: Modicon M221, M241, M251, M262 logic controllers
• IP Rating: IP20
• Mounting: DIN rail
• Total Lifecycle Carbon Footprint: 159 kg CO2 eq.
• Packaging Made with Recycled Cardboard: Yes
• Certifications: CSA
• Standards: IEC 61131-2, IEC 62061, EN/ISO 13849-1

Provides safety monitoring functions for Modicon TM3 expansion I/O systems, enabling emergency stop and safety switch monitoring in industrial automation, process control, assembly lines, and refrigeration plant applications without requiring a dedicated safety controller.
