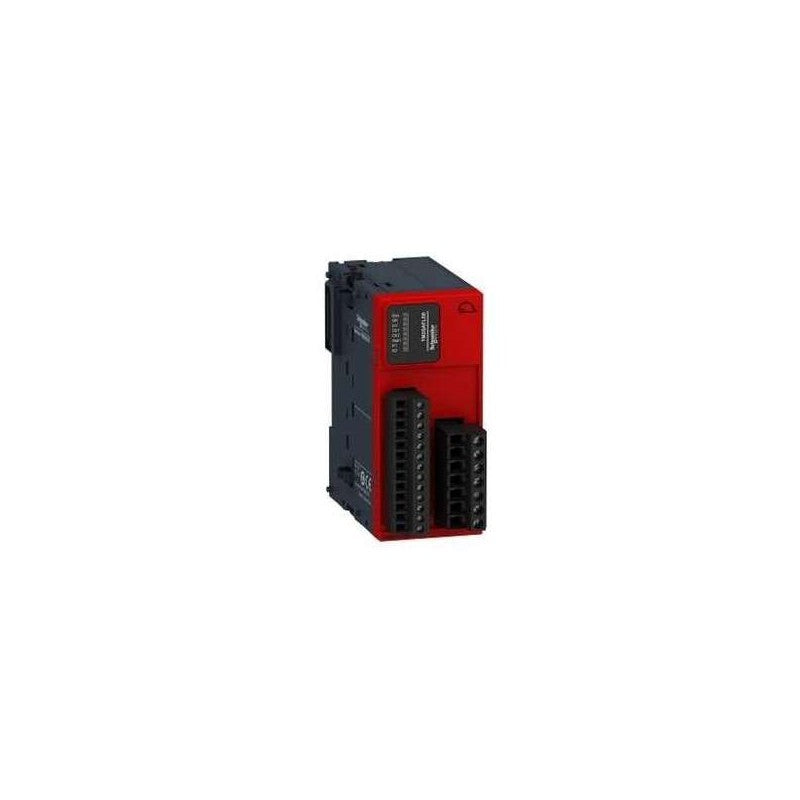

Schneider Electric TM3SAFL5R | Industrial Automation Component

TM3SAFL5R Schneider Electric - Safety Module Modicon TM3 - 2 Functions - Cat 3 PL d - SIL CL2 - Screw Terminals - 24V DC. The Schneider Electric TM3SAFL5R is a safety module from the Modicon TM3 range, designed to add functional safety I/O capabilities to Modicon M2xx logic controllers. It provides 2 safety functions with maximum performance level Category 3, PL d, and SIL CL 2. The module features 2 safety-related input channels (24V DC) with monitored or unmonitored start modes, and 3 parallel relay outputs (NO contacts, 24V AC/230V DC, maximum 6A per output path) providing stop category 0. It uses removable screw terminal blocks for reliable wiring. The module supports monitoring of emergency stop circuits, movable guards with limit switches, and safety light curtains (type 4 per IEC/EN 61496-1). It includes a feedback loop for monitoring external contactors and features 8 status LEDs for diagnostics. This module completes Modicon M221, M241, or M251 PLC configurations with dedicated safety I/O without requiring a complete safety controller.

• Brand: Schneider Electric
• Category: PLC Safety Modules
• Range of Product: Modicon TM3
• Product Type: Safety Module
• Number of Safety Functions: 2
• Maximum Category: Category 3
• Performance Level: PL d
• SIL Claim Limit: SIL CL 2
• Safety Input Channels: 2
• Input Voltage: 24 V DC (-15% to +20%)
• Current Consumption: 100 mA at 24 V DC (external supply)
• Power Consumption: 0.2 W at 5 V DC, 3.6 W at 24 V DC
• Start Mode: Monitored start or unmonitored start
• Relay Outputs: 3 parallel (NO contacts)
• Output Voltage: 24 V AC / 230 V DC
• Output Current: 6 A maximum per output path
• Output Thermal Current: 6 A per relay, 18 A conventional
• Stop Category: 0 (IEC/EN 60204-1)
• Response Time: Less than or equal to 40 ms
• Associated Fuse Rating: 4 A gG/gL or 6 A fast blow
• Rated Impulse Withstand Voltage: 4 kV
• Rated Insulation Voltage: 300 V
• PFHd: 5 x 10-9/h (1 op/hr), 30 x 10-9/h (60 ops/hr)
• MTTFd: 500 years (1 op/hr), 85 years (60 ops/hr)
• SFF: 95%
• Hardware Fault Tolerance: 1
• Type: A (IEC/EN 61508)
• Diagnostic Coverage: 95%
• Cable Distance: 30 m
• Terminal Type: Removable screw terminal blocks
• Local Signalling: 8 LEDs (green/red)
• Compatible Controllers: Modicon M221, M241, M251
• Compatible Sensors: Emergency stops, limit switches, safety light curtains (type 4)
• Net Weight: 0.19 kg
• IP Rating: IP20
• RoHS Status: Exempt
• Standards: EN/ISO 13849-1, EN/IEC 62061, EN/IEC 61508, EN/IEC 60947-5-1, EN/IEC 61131-2

Monitoring emergency stop circuits, movable guards, and safety light curtains in industrial automation systems with Modicon M2xx controllers requiring 2 safety functions
