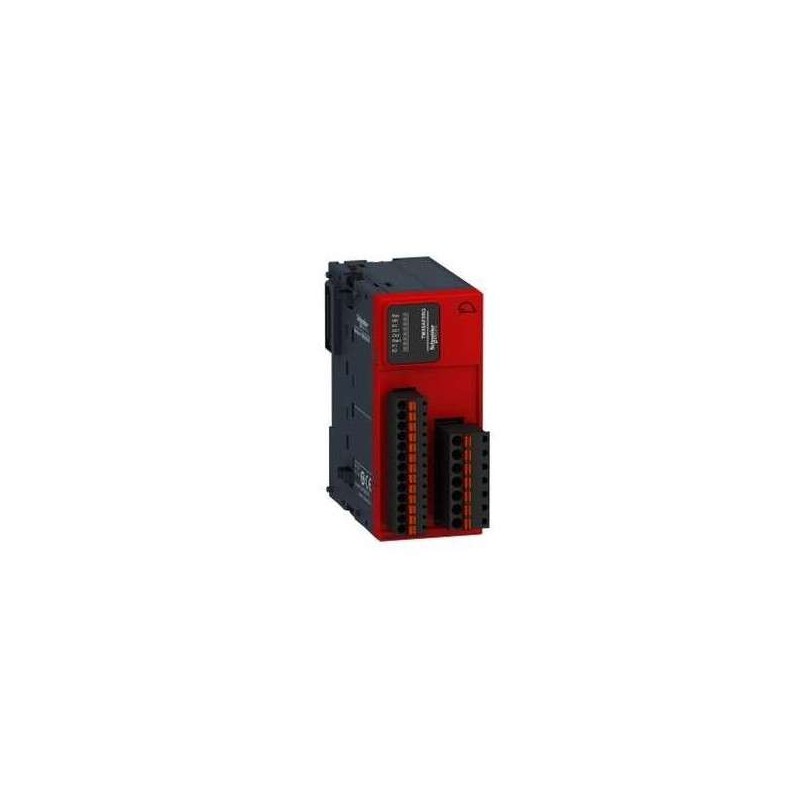

Schneider Electric TM3SAF5RG | Industrial Automation Component

TM3SAF5RG Schneider Electric - Safety Module Modicon TM3 - 1 Function - Cat 4 PL e - SIL CL3 - Spring Terminals - 24V DC. The Schneider Electric TM3SAF5RG is a safety module from the Modicon TM3 range, designed to add functional safety I/O capabilities to Modicon M2xx logic controllers. It provides 1 safety function with maximum performance level Category 4, PL e, and SIL CL 3. The module features 2 safety-related inputs (24V DC) and 3 parallel relay outputs (NO contacts, 24V AC/230V DC, maximum 6A per output). It uses removable spring terminal blocks for fast and reliable wiring of safety circuits. The module supports monitoring of emergency stop and limit switch circuits on safety devices. It includes a feedback loop for monitoring external contactors and provides stop category 0 according to IEC/EN 60204-1. This is a Green Premium product certified by TUV and UL.

• Brand: Schneider Electric
• Category: PLC Safety Modules
• Range of Product: Modicon TM3
• Product Type: Safety Module
• Number of Safety Functions: 1
• Maximum Category: Category 4
• Performance Level: PL e
• SIL Claim Limit: SIL CL 3
• Safety-Related Inputs: 2
• Input Voltage: 24 V DC
• Input Current: 100 mA maximum
• Relay Outputs: 3 parallel (NO contacts)
• Output Voltage: 24 V AC / 230 V DC
• Output Current: 6 A maximum per output path
• Stop Category: 0 (IEC/EN 60204-1)
• Terminal Type: Removable spring terminal blocks (3.81 mm and 5.08 mm pitch)
• Compatible Controllers: Modicon M221, M241, M251, M262
• Dimensions (W x H x D): 43.7 x 94 x 73 mm
• Net Weight: 0.19 kg
• IP Rating: IP20
• Operating Temperature: -10 to +55 degrees Celsius
• Storage Temperature: -25 to +70 degrees Celsius
• Operating Altitude: 0-2000 m
• Relative Humidity: 10-95% (without condensation)
• Carbon Footprint: 158 kg CO2 eq (total lifecycle)
• Product Certifications: UL 61010-2-201, EAC, TUV
• Sustainable Offer Status: Green Premium product
• Standards: ISO/EN 13849, IEC/EN 62061, IEC/EN 61508

Monitoring emergency stop and limit switch circuits on safety devices in industrial automation systems requiring Category 4 safety performance with Modicon M2xx controllers
