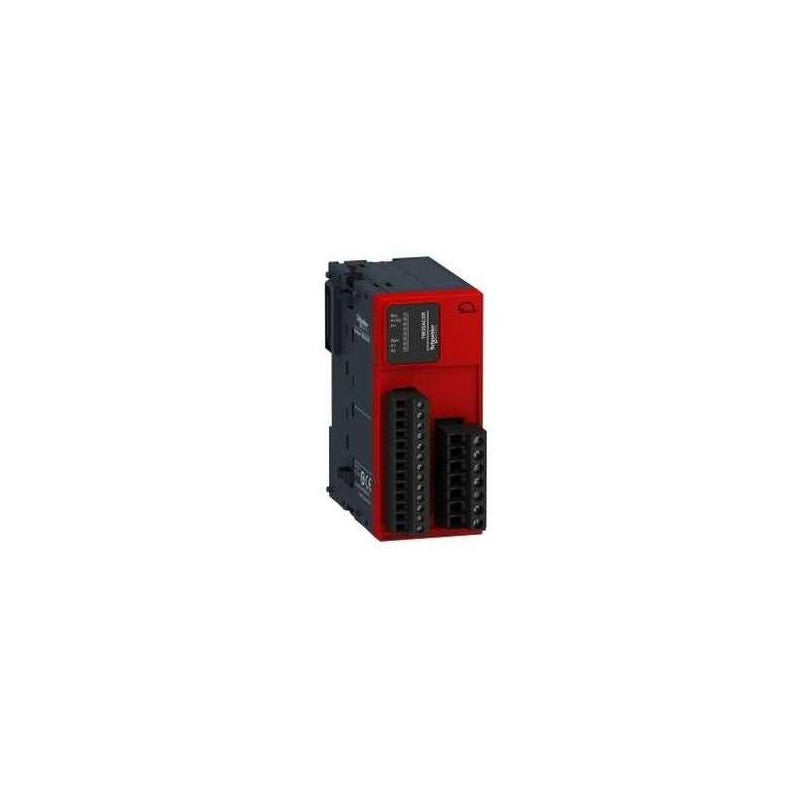

TM3SAC5R Schneider Electric - Schneider Electric TM3SAC5R Safety Module. Modicon TM3 Safety module for emergency stop and switch monitoring, 1 function, max category 3, with 3 relay outputs, screw terminals.

  • Brand: Schneider Electric
  • Category: Safety Module
  • Product Type: Safety Module
  • Series: Modicon TM3 Safety
  • Device Short Name: TM3SAC
  • Application: Emergency stop and switch monitoring
  • Number of Functions: 1
  • Max Safety Category: 3
  • Safety Input Channels: 1 or 2
  • Control Circuit Voltage: 24 VDC
  • Rated Supply Voltage: 24 VDC (-15...+20%)
  • Power Consumption: 3.6 W at 24 VDC, 0.2 W at 5 VDC
  • Output Type: 3 NO relay (instantaneous opening)
  • Max Switching Voltage: 230 VAC (AC-15), 24 VDC (DC-13)
  • Output Thermal Current: 6 A per relay
  • Conventional Free Air Thermal Current: 18 A
  • Response Time: ≤ 40 ms (input open)
  • Min Output Current: 10 mA
  • Terminal Block: Screw terminal
  • Terminal Pitch: 3.81 mm and 5.08 mm
  • Local Signalling: 6 LEDs (green/red)
  • Input Protection: Internal, electronic
  • Rated Insulation Voltage: 300 V
  • Rated Impulse Withstand Voltage: 4 kV
  • Current Consumption: 100 mA at 24 VDC (external supply, on)
  • Associated Fuse Rating: 4 A gG/gL or 6 A fast blow

Emergency stop monitoring and safety switch monitoring in industrial automation systems with Modicon PLCs.
