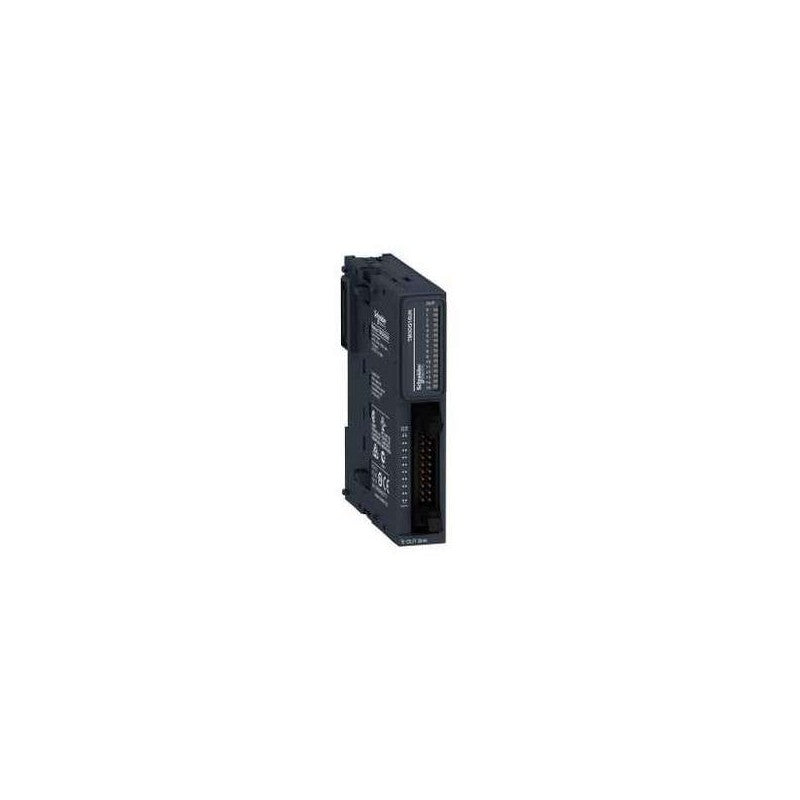

TM3DQ16UK Schneider Electric - Modicon TM3 Discrete Output Module - 16 Transistor NPN. Discrete output module from the Modicon TM3 range offering 16 transistor outputs with sink (NPN) logic. Provides 24 V DC output voltage at 100 mA per channel with HE-10 connector for outputs. Compatible with Modicon M221, M241, M251 and M262 logic controllers.

  • Brand: Schneider Electric
  • Category: PLC Output Module
  • Series: Modicon TM3
  • Product Type: Discrete Output Module
  • Output Type: Transistor (Sink/NPN)
  • Number of Outputs: 16
  • Rated Output Voltage: 24 V DC
  • Output Voltage Range: 19.2-28.8 V DC
  • Output Current per Channel: 100 mA
  • Response Time: 450 µs (turn-on/off)
  • Leakage Current: 0.1 mA max
  • Voltage Drop: 0.4 V max
  • Switching Frequency: 100 Hz max (resistive)
  • Connection Type: HE10 (MIL 20) connector
  • Insulation: 500 V AC (output to internal logic)
  • Mounting: DIN Rail (TH35-15 / TH35-7.5)
  • Dimensions (W x D x H): 21.4 x 81.3 x 90 mm
  • Product Weight: 0.76 kg
  • IP Rating: IP20
  • Compatibility: Modicon M221, M241, M251, M262
  • Certifications: CE, cULus, C-Tick
  • Standards: EN/IEC 61131-2, EN/IEC 61010-2-201

Ideal for expanding I/O capacity of Modicon M221, M241, M251 and M262 logic controllers in industrial automation systems requiring high-density digital output control.
