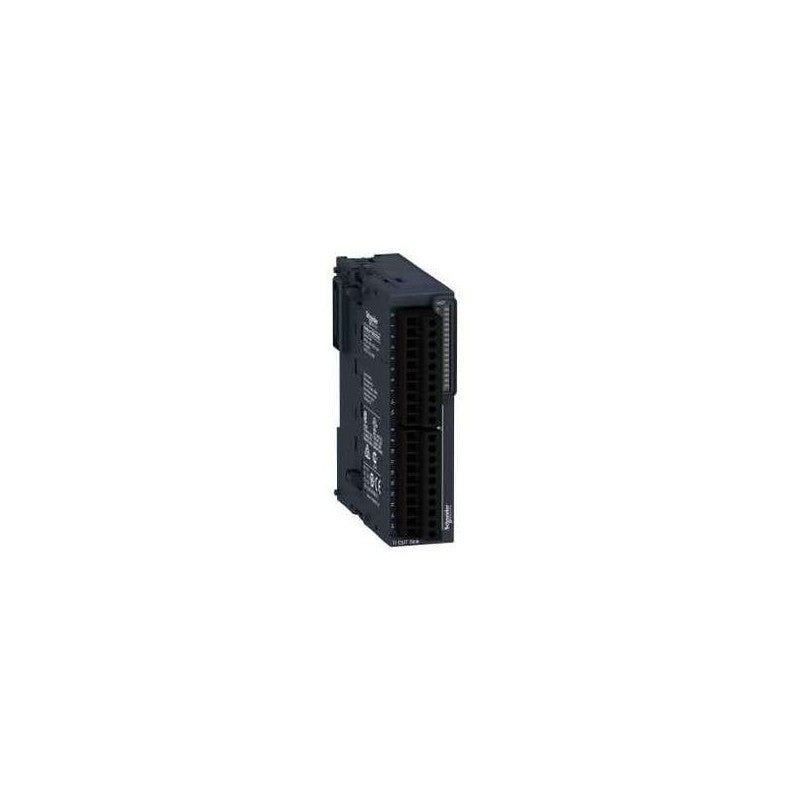

Schneider Electric TM3DQ16U | Industrial Automation Component

TM3DQ16U Schneider Electric - Schneider Electric TM3DQ16U Discrete Output Module. Modicon TM3 discrete output module with 16 transistor sink (NPN) outputs, 24V DC, 0.5 A per output, screw terminal, designed for Modicon M221, M241, M251, and M262 PLCs.

• Brand: Schneider Electric
• Category: PLC Output Module
• Product Type: Discrete Output Module
• Series: Modicon TM3
• Number of Outputs: 16 transistor (sink/NPN)
• Output Voltage: 24 VDC
• Output Current: 0.5 A per output
• Max Current per Common: 8 A
• Response Time: 450 µs (on/off)
• Leakage Current: 0.1 mA
• Voltage Drop: 0.4 V
• Terminal Block: Removable screw terminal
• Terminal Pitch: 3.81 mm
• Compatible PLCs: Modicon M221, M241, M251, M262
• Max Cable Length: 30 m (unshielded)
• Isolation: 1500 V AC (output/supply), 500 V AC (output/internal logic)
• Local Signalling: 1 LED per channel (green)
• Dimensions: 90 x 81.3 x 21.4 mm
• Mounting: DIN rail (TH35) or panel mount
• Protection Rating: IP20
• Certifications: CE, cULus, C-Tick
• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201

Transistor sink output control for Modicon M221, M241, M251, and M262 PLC systems, capable of controlling variable speed drives and devices with current or voltage inputs.
