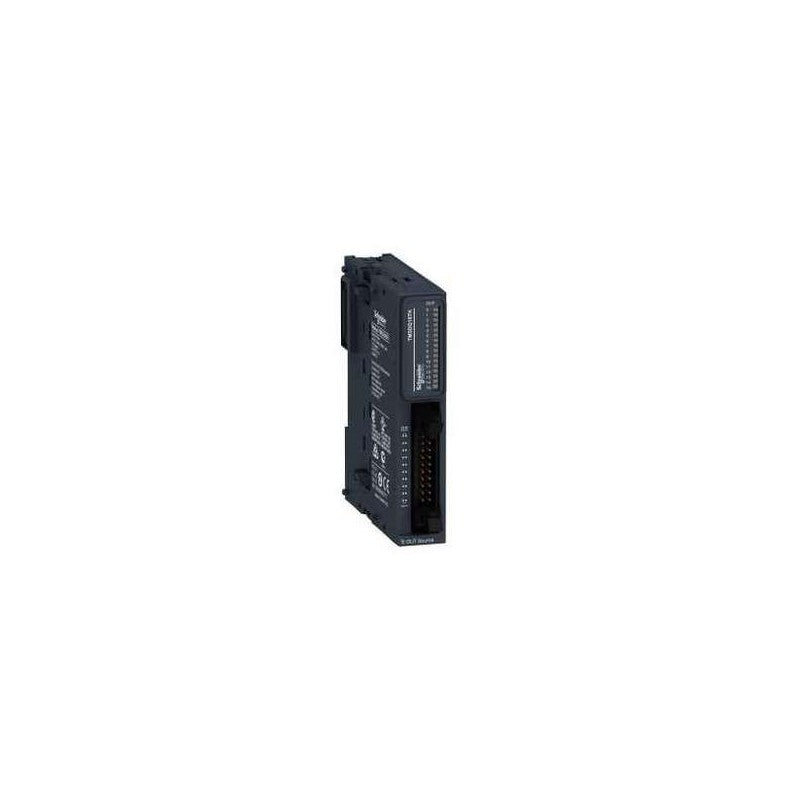

Schneider Electric TM3DQ16TK | Industrial Automation Component

TM3DQ16TK Schneider Electric - Modicon TM3 Discrete Output Module - 16 Transistor PNP. Discrete output module from the Modicon TM3 range offering 16 transistor outputs with source (PNP) logic. Provides 24 V DC output voltage at 100 mA per channel with HE-10 connector for outputs. Compatible with Modicon M221, M241, M251 and M262 logic controllers.

• Brand: Schneider Electric
• Category: PLC Output Module
• Series: Modicon TM3
• Product Type: Discrete Output Module
• Output Type: Transistor (Source/PNP)
• Number of Outputs: 16
• Rated Output Voltage: 24 V DC
• Output Current per Channel: 100 mA
• Response Time: 450 µs (turn-on/off)
• Leakage Current: 0.1 mA max
• Voltage Drop: <0.4 V
• Switching Frequency: 100 Hz max (resistive)
• Connection Type: HE-10 connector
• Insulation: 500 V AC (output to internal logic)
• Local Signalling: 1 LED per channel (green)
• Mounting: DIN Rail
• Compatibility: Modicon M221, M241, M251, M262
• Standards: EN/IEC 61131-2
• Certifications: CE

Ideal for expanding I/O capacity of Modicon M221, M241, M251 and M262 logic controllers in industrial automation systems requiring PNP (sourcing) digital output control.
