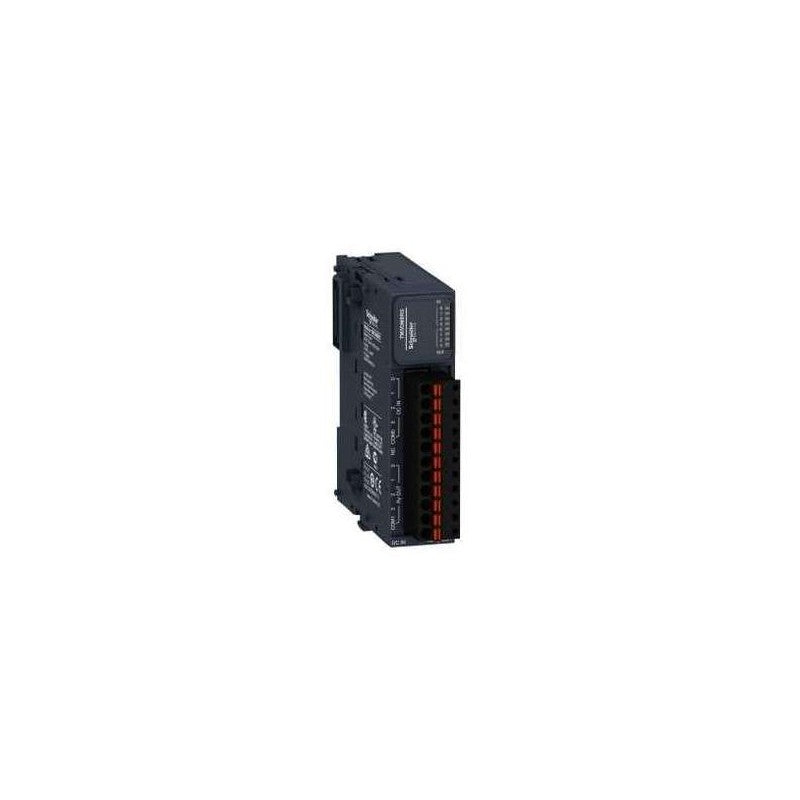

Schneider Electric TM3DM8RG | Industrial Automation Component

TM3DM8RG Schneider Electric - Schneider Electric TM3DM8RG Discrete I/O Module. Modicon TM3 discrete I/O module with 8 I/O (4 inputs and 4 relay outputs), spring terminal, 24V DC, designed for Modicon M221, M241, and M251 PLCs.

• Brand: Schneider Electric
• Category: PLC I/O Module
• Product Type: Discrete I/O Module
• Series: Modicon TM3
• Total I/O: 8 (4 inputs + 4 outputs)
• Input Type: Type 1 (IEC/EN 61131-2)
• Input Logic: Sink/Source
• Rated Input Voltage: 24 VDC
• Input Voltage Range: 0...28.8 VDC
• Rated Input Current: 7 mA
• Input Impedance: 3.4 kΩ
• Output Type: Relay (normally open)
• Number of Outputs: 4
• Output Voltage: 24 VDC / 240 VAC
• Output Current: 2 A per output
• Max Current per Common: 7 A
• Terminal Block: Removable spring terminal
• Terminal Pitch: 5.08 mm
• Wire Capacity: 2.5 mm²
• Compatible PLCs: Modicon M221, M241, M251
• Dimensions: 23.5 x 90 x 70 mm
• Response Time: 4 ms (on/off)
• Mechanical Durability: 20,000,000 cycles
• Protection Rating: IP20
• Operating Temperature: -10 to 55°C
• Certifications: CE
• Standards: EN/IEC 61131-2

Mixed discrete input and relay output control for Modicon M221, M241, and M251 PLC systems in industrial automation.
