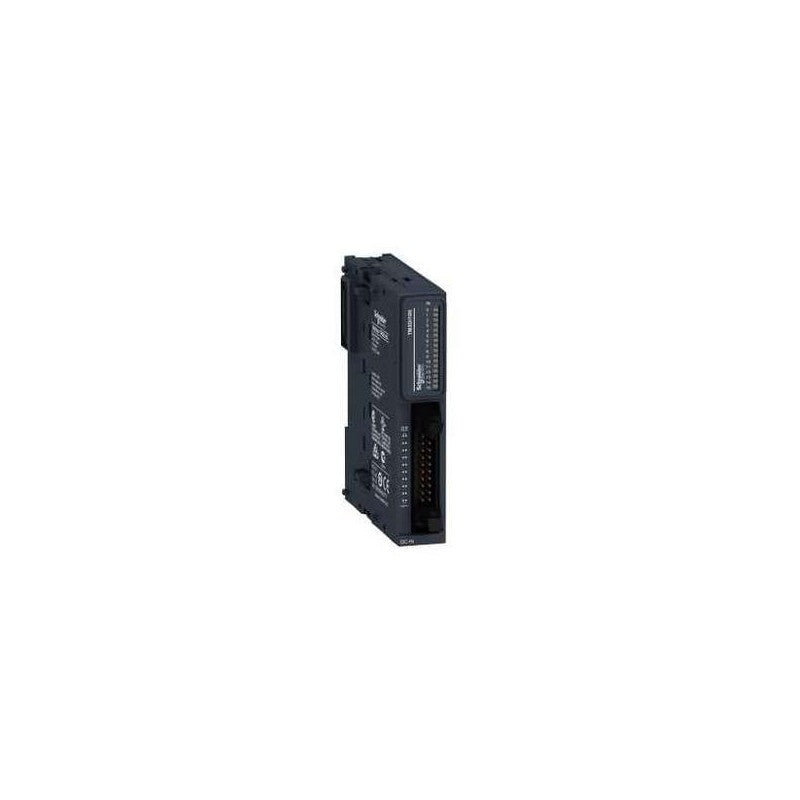

Schneider Electric TM3DI16K | Industrial Automation Component

TM3DI16K Schneider Electric - Schneider Electric TM3DI16K Discrete Input Module. Modicon TM3 discrete input module with 16 inputs, HE10 connector, 24V DC, designed for Modicon M221, M241, and M251 PLCs.

• Brand: Schneider Electric
• Category: PLC Input Module
• Product Type: Discrete Input Module
• Series: Modicon TM3
• Number of Inputs: 16
• Input Type: Type 3 (IEC/EN 61131-2)
• Input Logic: Sink or Source
• Rated Input Voltage: 24 VDC
• Input Voltage Range: 19.2...28.8 VDC
• Rated Input Current: 5 mA
• Input Impedance: 4.4 kΩ
• Response Time: 4 ms (on/off)
• Electrical Connection: HE-10 connector
• Max Cable Length: 50 m (unshielded)
• Compatible PLCs: Modicon M221, M241, M251
• Isolation: 500 V AC between input and internal logic
• Local Signalling: 1 LED per channel (green)
• Mounting: DIN rail (TH35) or panel mount
• Protection Rating: IP20
• Operating Temperature: -10 to 55°C (14 to 131°F)
• Current Consumption: 35 mA at 5 VDC (on), 5 mA at 5 VDC (off)
• Carbon Footprint: 44 kg CO2 eq
• Certifications: CE
• Standards: EN/IEC 61131-2

Digital input acquisition for Modicon M221, M241, and M251 PLC systems in industrial automation applications.
