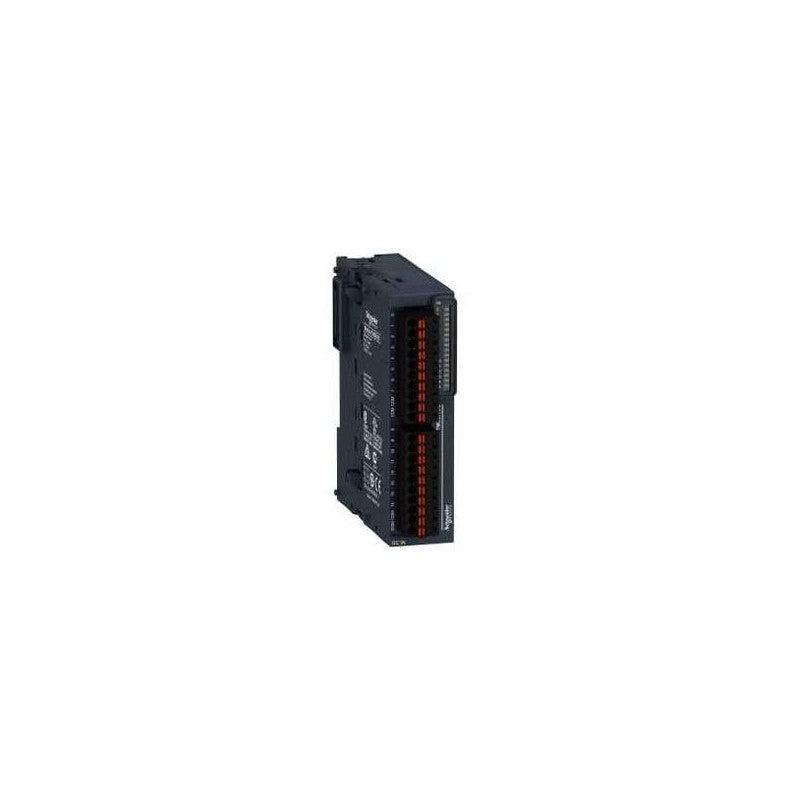

TM3DI16G Schneider Electric - Schneider Electric TM3DI16G Discrete Input Module. Modicon TM3 discrete input module with 16 inputs, spring terminal, 24V DC, designed for Modicon M221, M241, M251, and M262 PLCs.

  • Brand: Schneider Electric
  • Category: PLC Input Module
  • Product Type: Discrete Input Module
  • Series: Modicon TM3
  • Number of Inputs: 16
  • Input Type: Type 3 (IEC 61131-2)
  • Input Logic: Sink or Source (positive/negative)
  • Rated Input Voltage: 24 VDC
  • Rated Input Current: 7 mA
  • Input Impedance: 3.4 kΩ
  • Response Time: 4 ms (on/off)
  • Terminal Block: Removable spring terminal
  • Terminal Pitch: 3.81 mm
  • Wire Capacity: 1.5 mm² (AWG 26-16)
  • Compatible PLCs: Modicon M221, M241, M251, M262
  • Isolation: 500 V AC between input and internal logic
  • Max Cable Length: 50 m (unshielded)
  • Local Signalling: 1 LED per channel (green)
  • Dimensions: 90 x 84.6 x 27.4 mm
  • Weight: 0.1 kg
  • Mounting: DIN rail (TH35) or panel mount
  • Protection Rating: IP20
  • Operating Temperature: -10 to 55°C
  • MTBF: 250 years at 40°C
  • Certifications: CE, cULus, UKCA, RCM, EAC, cULus HazLoc
  • Standards: EN/IEC 61131-2, EN/IEC 61010-2-201

Digital input acquisition for Modicon M221, M241, M251, and M262 PLC systems in industrial automation applications.
