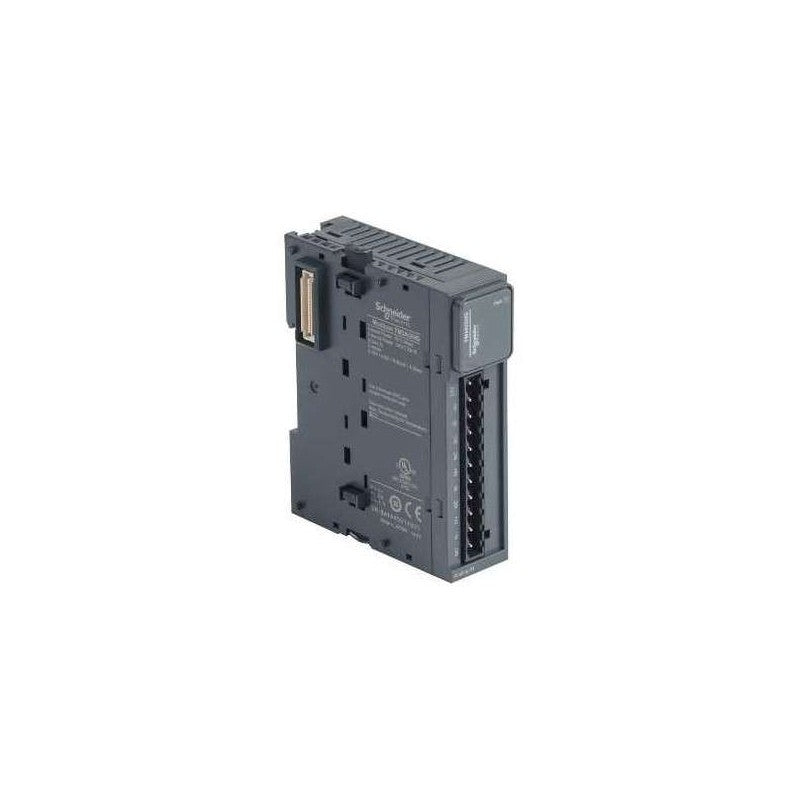

Schneider Electric TM3AI2HG | Industrial Automation Component

SKU: TM3AI2HG
(2)
$102.83
-13% $118.25 $102.83
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

TM3AI2HG Schneider Electric - Schneider Electric TM3AI2HG Analog Input Module. Modicon TM3 analog input module with 2 high-resolution (16-bit) channels, spring terminals, supporting voltage and current signals, designed for Modicon M221, M241, M251, and M262 PLCs.

  • Brand: Schneider Electric
  • Category: Analog Input Module
  • Product Type: Analog Input Module
  • Series: Modicon TM3
  • Number of Channels: 2
  • Resolution: 16 bits (15 bits + sign)
  • Input Types: 0...10 V, -10...+10 V, 0...20 mA, 4...20 mA
  • Input Impedance: ≥ 1 MΩ (voltage), ≤ 50 Ω (current)
  • Permissible Overload: 13 V (voltage), 40 mA (current)
  • Conversion Time: 1 ms + 1 ms per channel + 1 controller cycle
  • Sampling Duration: ≤ 1 ms
  • Absolute Accuracy: ± 0.1% of full scale at 25°C
  • Temperature Drift: ± 0.006% FS/°C
  • Repeat Accuracy: ± 0.5% FS
  • Non-linearity: ± 0.01% FS
  • Crosstalk: ≤ 1 LSB
  • Rated Supply Voltage: 24 VDC
  • Supply Voltage Range: 20.4...28.8 VDC
  • Terminal Block: Removable spring terminal
  • Terminal Pitch: 3.81 mm
  • Compatible PLCs: Modicon M221, M241, M251, M262
  • Cable Type: Twisted shielded pairs, max 30 m
  • Dimensions: 90 x 70 x 23.6 mm
  • Current Consumption: 30 mA at 5 VDC (no load), 40 mA at 5 VDC (full load), 25 mA at 24 VDC
  • Protection Rating: IP20
  • Mounting: DIN rail (TH35) or panel mount

High-resolution analog signal acquisition for Modicon M221, M241, M251, and M262 PLC systems in industrial automation applications.
