Schneider Electric TM3AI2H | Industrial Automation Component

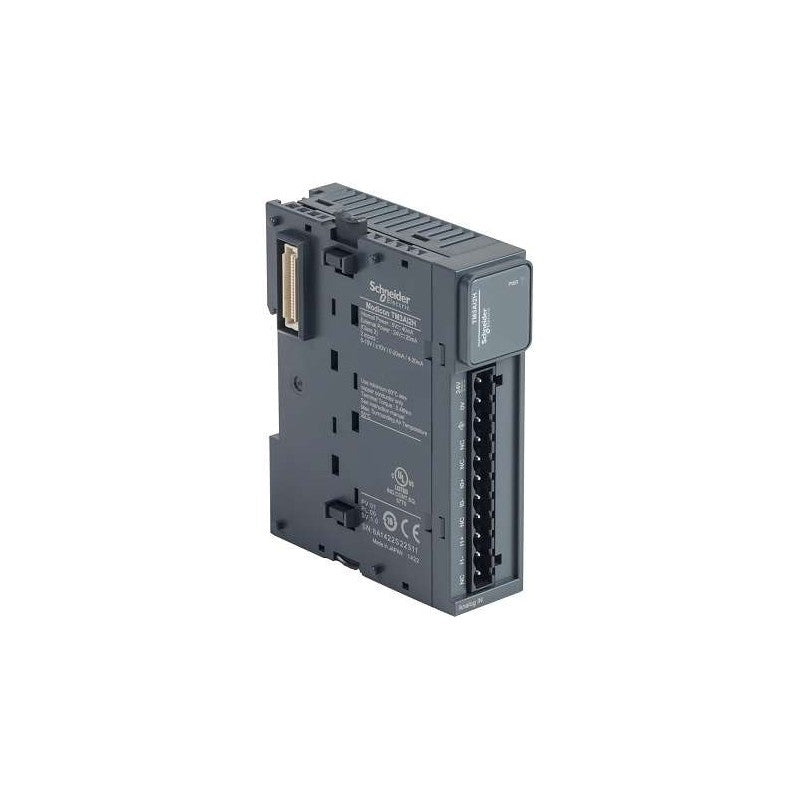

TM3AI2H Schneider Electric - Schneider Electric TM3AI2H Analog Input Module High Resolution. The Schneider Electric TM3AI2H is a high-resolution analog input expansion module from the Modicon TM3 range, designed for use with Modicon M221, M241, M251, and M262 logic controllers. It features 2 analog input channels with 16-bit resolution (15-bit plus sign), supporting voltage inputs of 0-10V and -10 to +10V, as well as current inputs of 0-20mA and 4-20mA. The module is equipped with a removable screw terminal block with 5.08mm pitch and provides input-to-supply isolation at 1500V AC. It offers high accuracy with +/-0.1% full-scale error at 25 degrees C.

• Brand: Schneider Electric
• Category: Programmable Logic Controllers > I/O Modules
• Product Type: Analog Input Module (High Resolution)
• Series: Modicon TM3
• Number of Inputs: 2
• Resolution: 16-bit (15-bit + sign)
• Input Ranges: 0-10V, -10 to +10V, 0-20mA, 4-20mA
• Input Impedance: >= 1 MOhm (voltage), <= 50 Ohm (current)
• Conversion Time: 1 ms + 1 ms per channel + 1 controller cycle
• Absolute Accuracy: +/- 0.1% FS at 25 degrees C
• Supply Voltage: 24V DC
• Terminal Type: Removable screw terminal block, 5.08mm pitch
• Isolation: 1500V AC (input to supply), 500V AC (input to logic)
• Protection Rating: IP20
• Compatible Controllers: Modicon M221, M241, M251, M262
• Mounting: DIN rail 35mm
• Dimensions (WxDxH): 23.6 x 70 x 90 mm
• Weight: 0.115 kg
• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
• Certifications: CE

Ideal for industrial automation requiring high-precision analog signal acquisition from sensors, transducers, and measurement devices in process control and monitoring applications.
