Schneider Electric TCSESU051F0 | Communication & I/O Module

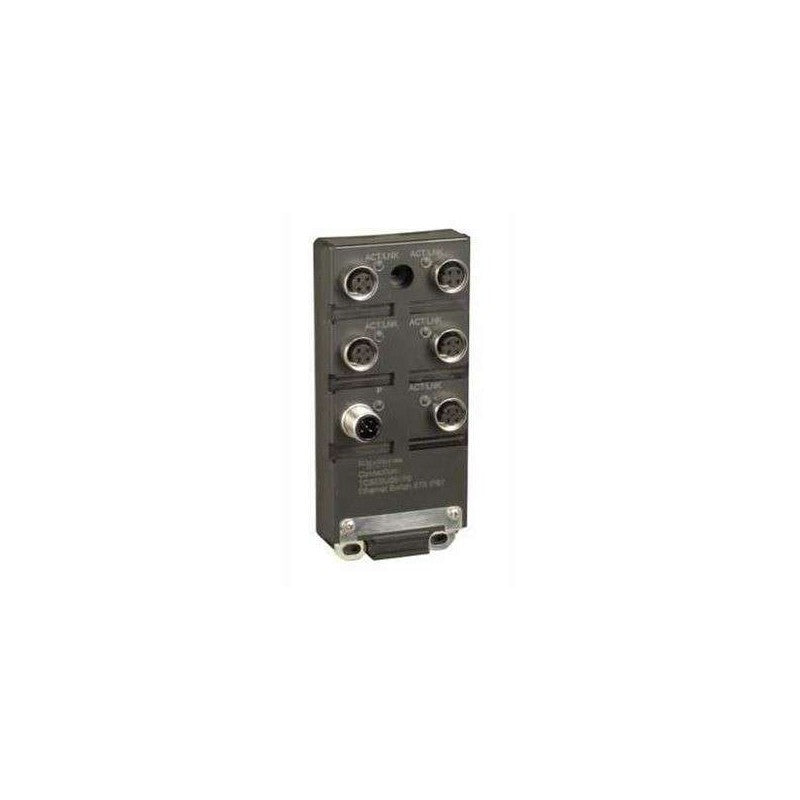

TCSESU051F0 Schneider Electric - ConneXium Unmanaged IP67 Ethernet Switch 5-Port M12. The Schneider Electric TCSESU051F0 is a rugged ConneXium unmanaged Ethernet switch with 5 ports and M12 connectors, designed for harsh industrial environments with IP67 protection.

• Brand: Schneider Electric
• Category: Industrial Networking
• Brand: Schneider Electric
• Product Range: ConneXium
• Product Type: Unmanaged Ethernet Switch
• Number of Ports: 5 x 10/100BaseTx (copper)
• Connector Type: M12 type D female
• Power Supply: 24V DC (18-32V DC SELV) via M12 type A male connector
• Power Consumption: 3.2W
• IP Rating: IP67
• Dimensions: 60 x 126 x 31 mm
• Net Weight: 0.21 kg
• Mounting: 35mm DIN rail
• Operating Temperature: 0 to 60 degrees C
• Relative Humidity: 0-95% non-condensing
• Max Cable Distance: 100m copper cable
• Protocols: Ethernet TCP/IP
• Cascade Support: Unlimited number of switches in cascade
• Certifications: CE, UL, RCM
• Standards: UL 61010, EN/IEC 61131
• Warranty: 18 months

Ideal for industrial networking in harsh environments requiring IP67 protection, including factory automation, process control, and outdoor installations where dust and water resistance is essential.
