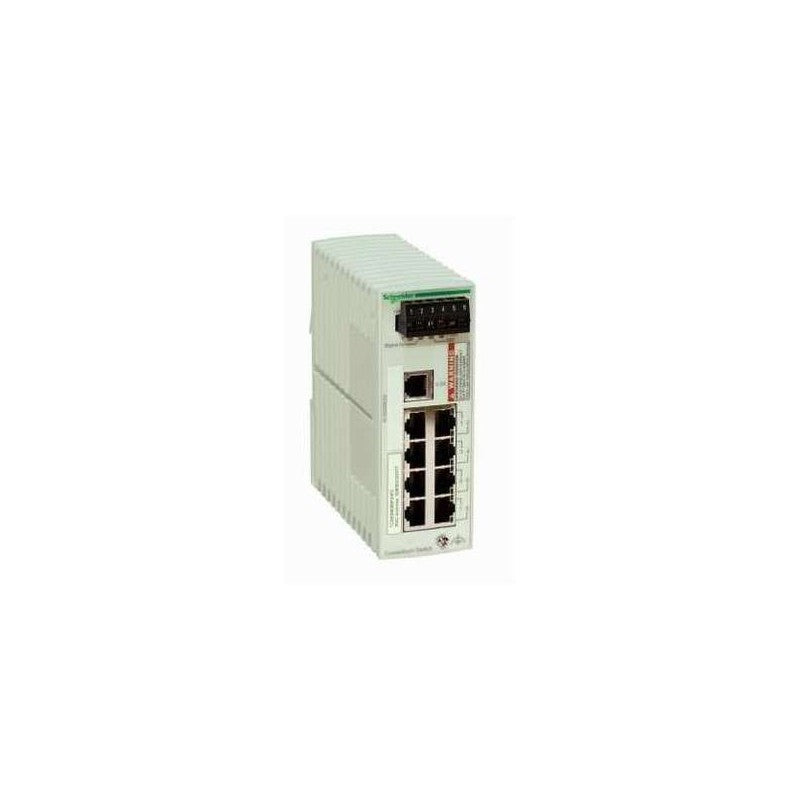

Schneider Electric TCSESB083F23F0 | Communication & I/O Module

TCSESB083F23F0 Schneider Electric - ConneXium Basic Managed Switch 8TX. The ConneXium TCSESB083F23F0 is a basic managed industrial Ethernet switch with 8 x 10/100Base-TX copper ports. It supports ring topology with up to 50 switches, RSTP redundancy, and IGMP snooping for efficient multicast management. Configuration is available via built-in web server. Designed for DIN rail mounting with compact dimensions and low power consumption.

• Brand: Schneider Electric
• Category: Industrial Network Switch
• Port Configuration: 8 x 10/100Base-TX copper
• Switch Type: Basic managed Layer 2
• Mounting: DIN rail
• Protection Rating: IP20
• Power Supply: 24V DC (9.6-32V)
• Power Consumption: 6W
• Ring Topology: Up to 50 switches
• Redundancy Protocol: RSTP
• Management: Web server, IGMP snooping
• Dimensions (W x H x D): 47 x 111 x 131 mm
• Weight: 0.41 kg
• Certifications: UL 508, CSA C22.2 No 213/214 Class I Div 2, EN/IEC 61131-2, CE

Industrial Ethernet networking, factory floor communication, machine-level network connectivity, process automation
