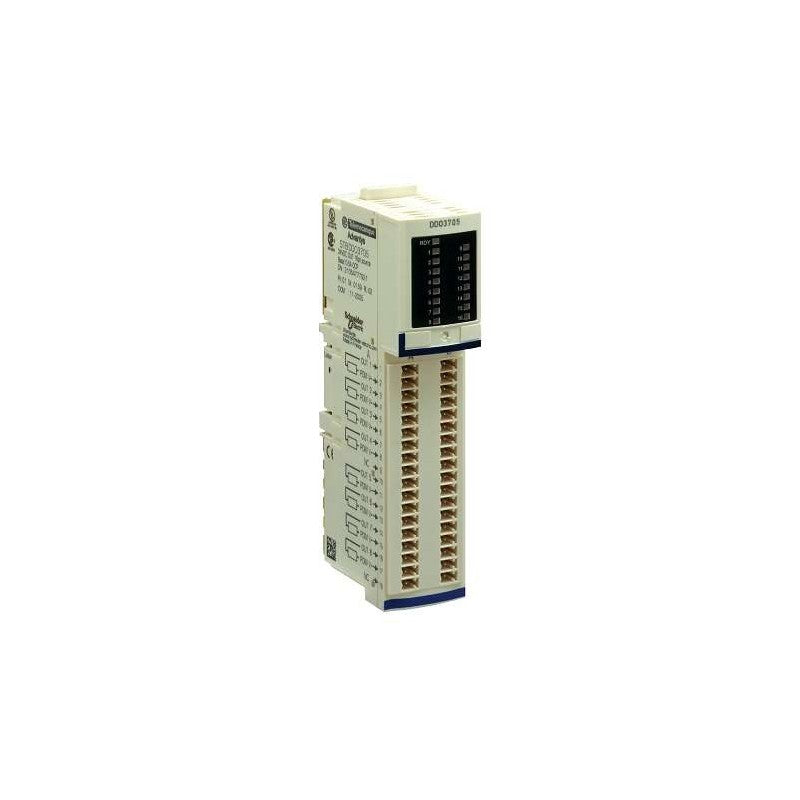

Schneider Electric STBDDO3705 | Industrial Automation Component

STBDDO3705 Schneider Electric - STBDDO3705. Advantys STB basic digital output module with 16 solid-state outputs at 24V DC. Provides 500mA per channel with positive logic output and 19.2-30V DC output voltage range. Features integrated 5A time-lag fuse on PDM, reverse polarity protection, short-circuit protection, and thermal overload protection. 1500V insulation between channels and logic bus. 2ms response time with 0.4mA maximum leakage current. FM Class 1 Division 2 certified for hazardous locations.

• Brand: Schneider Electric
• Category: Digital Output Module
• Product Type: Basic Digital Output Module
• Product Series: Modicon STB Distributed I/O
• Number of Outputs: 16
• Output Type: Solid State
• Output Voltage: 24V DC (19.2 to 30V)
• Output Logic: Positive
• Current per Channel: 500 mA
• Response Time: 2 ms (off-to-on), 2 ms (on-to-off)
• Max Leakage Current: 0.4 mA at state 0
• Protection Type: 5A fuse (PDM), Reverse polarity, Short-circuit, Thermal overload
• Isolation: 1500V for 1 minute (channels to logic bus)
• Max Load Capacitance: 10 uF
• Current Consumption: 135 mA at 5V DC (logic bus)
• Rated Supply Voltage: 24V DC (via PDM)
• Status LEDs: 1 Green (RDY) + 16 Green (OUT1-OUT16)
• Dimensions: 128.3 x 70 x 13.9 mm
• Protection Rating: IP20
• Operating Temperature: 0 to 60 °C
• Certifications: CE, UL, CSA, FM Class 1 Division 2
• Green Premium: Yes
• Country of Origin: Indonesia
• Weight: 0.086 kg
• Warranty: 18 months

Drives 16 discrete field actuators in Advantys STB distributed I/O systems, providing reliable digital output control with comprehensive protection for industrial automation and process control applications.
