Schneider Electric SR3XT101BD | Molded Case Circuit Breaker

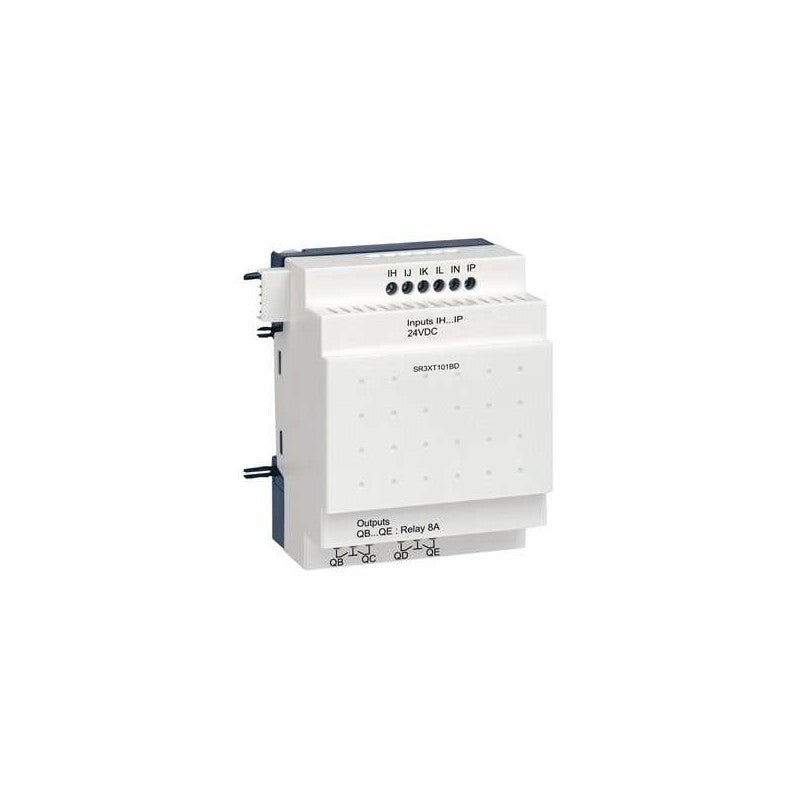

SR3XT101BD Schneider Electric - Zelio Logic SR3 Discrete I/O Extension Module, 24V DC, 6 In / 4 Relay Out. Discrete I/O extension module for Zelio Logic SR3 smart relays with 24V DC supply voltage. Features 6 discrete DC inputs and 4 relay outputs. Built-in EEPROM flash memory provides 10-year data backup at 25°C. Screw clamp terminals and DIN rail mounting enable easy installation.

• Brand: Schneider Electric
• Category: I/O Extension Module
• Product Type: Discrete I/O Extension Module
• Series: Zelio Logic SR3
• Supply Voltage: 24 V DC (19.2-30 V limits)
• Number of Inputs: 6 (Discrete, 24V DC)
• Input Current: 4 mA
• Counting Frequency: 1 kHz
• Number of Outputs: 4 (Relay)
• Output Thermal Current: 8 A
• Output Voltage Range: 5-30 V DC / 24-250 V AC
• Terminal Type: Screw clamp (0.25-2.5 mm²)
• Operating Temperature: -20°C to 55°C
• Ingress Protection: IP20
• Dimensions: 110 x 72 x 59.5 mm
• Net Weight: 0.2 kg
• Certifications: UL, CSA, GL, GOST, C-Tick
• Green Premium: Yes

Expands I/O capacity of Zelio Logic SR3 smart relays for small machine automation, lighting management, HVAC control, and access control where additional 24V DC discrete inputs and relay outputs are needed.
