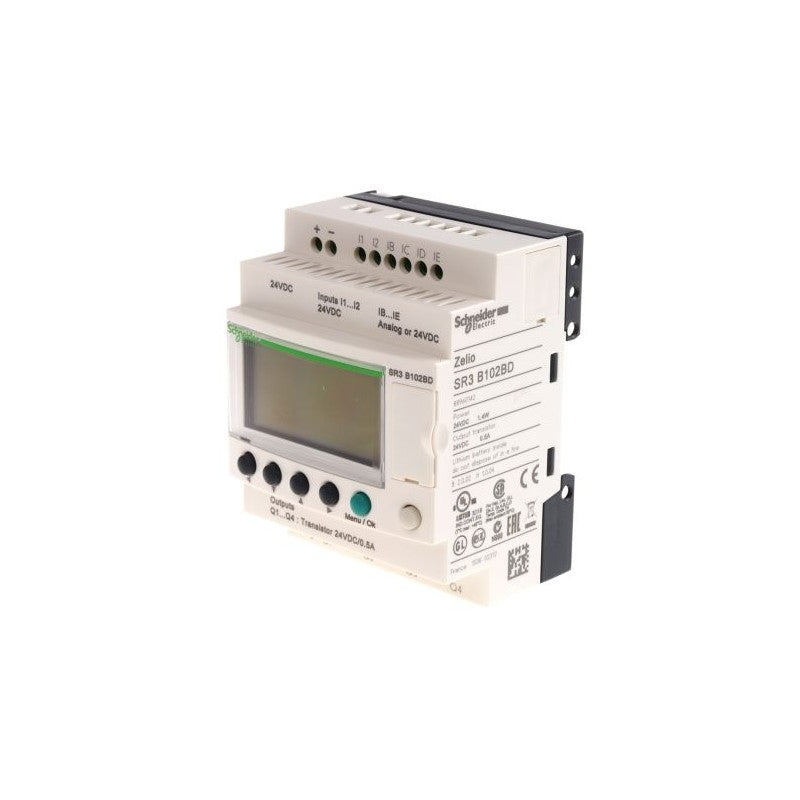

SR3B102BD Schneider Electric - Modular Smart Relay Zelio Logic SR3 - 10 I/O - 24V DC - with Clock - with Display - 4 Transistor Outputs. The Schneider Electric SR3B102BD is a modular smart relay from the Zelio Logic SR3 series, designed for simple automation system management with expandable I/O capability. It features 6 discrete inputs (24V DC, 4 usable as analog inputs with 0-10V range) and 4 transistor outputs, providing 10 total I/O points. The relay operates on 24V DC supply with a power consumption of 4W without extension and includes a backlit LCD display with contextual navigation buttons for on-site programming and monitoring. It includes a real-time clock for time-based automation functions. It supports both Function Block Diagram (FBD) and Ladder Diagram (LD) programming and mounts on standard DIN rail with screw terminals. The transistor outputs provide 24V DC at 0.625A per channel with short-circuit and overvoltage protection, and a response time of 1ms or less. The module is rated IP20 on the terminal block and IP40 on the front panel, with an operating temperature range of -20 to +55 degrees Celsius. Built-in EEPROM flash memory provides data backup up to 10 years for easy recovery after power interruption.

• Brand: Schneider Electric
• Category: Logic Controllers
• Range of Product: Zelio Logic
• Product Type: Modular Smart Relay
• Discrete Input Channels: 6 (4 usable as analog)
• Discrete Input Voltage: 24 V DC
• Discrete Input Current: 4 mA
• Analog Input Range: 0-10 V, 0-24 V
• Analog Input Resolution: 8 bits
• Discrete Output Channels: 4 transistor outputs
• Total I/O: 10
• Supply Voltage: 24 V DC
• Supply Voltage Limits: 19.2-30 V DC
• Supply Current: 50 mA (without extension), 160 mA (with extensions)
• Power Consumption: 4 W (without extension), 8 W (with extensions)
• Local Display: With backlit LCD display
• Clock: With real-time clock
• Output Type: Transistor
• Output Voltage: 24 V DC (limits 19.2-30 V DC)
• Output Current: 0.625 A per output
• Output Protection: Short-circuit, overvoltage
• Response Time: Less than or equal to 1 ms
• Mounting Type: DIN rail
• Connection Type: Screw terminals
• Programming Languages: FBD (Function Block Diagram), LD (Ladder Diagram)
• Control Scheme Lines: Up to 240 with Ladder, up to 500 with FBD
• Cycle Time: 6-90 ms
• Backup Time: 10 years at 25 degrees Celsius
• Reverse Polarity Protection: Yes
• Dimensions (W x H x D): 107.6 x 65.4 x 84 mm
• Net Weight: 0.22 kg
• IP Rating: IP20 (terminal block), IP40 (front panel)
• Operating Temperature: -20 to +55 degrees Celsius
• UPC: 785901571827
• Country of Origin: France
• Standards: EN/IEC 61131-2, UL, CSA, GL, GOST, C-Tick

Managing simple automation systems with expandable I/O and transistor outputs in industrial control, building automation, and small machine applications
