Schneider Electric SR2E201BD | Relay & Timer

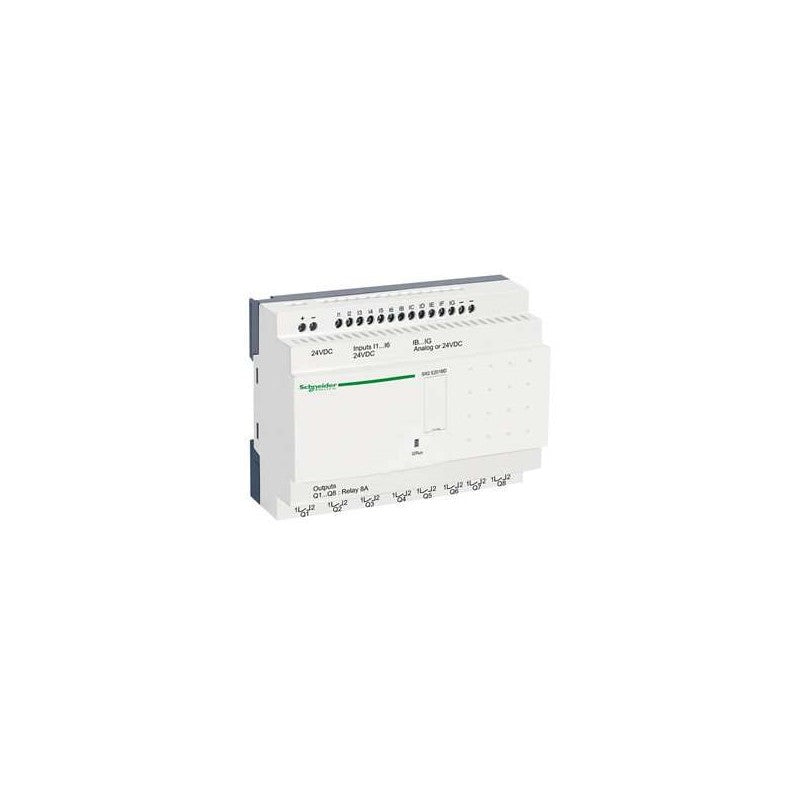

SR2E201BD Schneider Electric - Compact Smart Relay Zelio Logic - 20 I/O - 24V DC - with Clock - no Display - 8 Relay Outputs. The Schneider Electric SR2E201BD is a compact smart relay from the Zelio Logic SR2 series, designed for simple automation system management. It features 12 discrete inputs (24V DC, 6 usable as analog 0-10V) and 8 relay outputs, providing 20 total I/O points. The relay operates on 24V DC supply with a power consumption of 6W and includes a real-time clock but no display. It supports Function Block Diagram (FBD), Ladder Diagram (LD), and Sequential Function Chart (SFC) programming using the free Zelio Soft software and mounts on standard DIN rail with screw terminals. The module is rated IP20 on the terminal block and IP40 on the front panel, with an operating temperature range of -20 to +55 degrees Celsius. Built-in EEPROM flash memory provides data backup up to 10 years for easy recovery after power interruption. This is a Green Premium product with a carbon footprint of 607 kg CO2 equivalent.

• Brand: Schneider Electric
• Category: Logic Controllers
• Range of Product: Zelio Logic
• Product Type: Compact Smart Relay
• Discrete Input Channels: 12 (6 usable as analog 0-10V)
• Discrete Input Voltage: 24 V DC
• Discrete Output Channels: 8 relay outputs
• Total I/O: 20
• Supply Voltage: 24 V DC
• Supply Voltage Limits: 19.2-30 V DC
• Maximum Supply Current: 100 mA (without extension)
• Power Consumption: 6 W (without extension)
• Local Display: No
• Clock: Yes (real-time clock)
• Output Type: Relay (NO contacts)
• Output Thermal Current: 8 A
• Mounting Type: DIN rail
• Connection Type: Screw terminals
• Programming Languages: FBD, LD (Ladder), SFC
• Programming Interface: Computer, Operating Panel
• Backup Time: 10 years at 25 degrees Celsius
• Net Weight: 0.35 kg
• IP Rating: IP20 (terminal block), IP40 (front panel)
• Operating Temperature: -20 to +55 degrees Celsius
• Carbon Footprint: 607 kg CO2 eq (total lifecycle)
• Sustainable Offer Status: Green Premium product
• Standards: EN/IEC 61131-2, CE, cULus, CSA, GL, GOST, C-Tick

Managing simple automation systems with 20 I/O in industrial control, building automation, and small machine applications with real-time clock for scheduling and timer functions
