Schneider Electric SR2E121FU | Relay & Timer

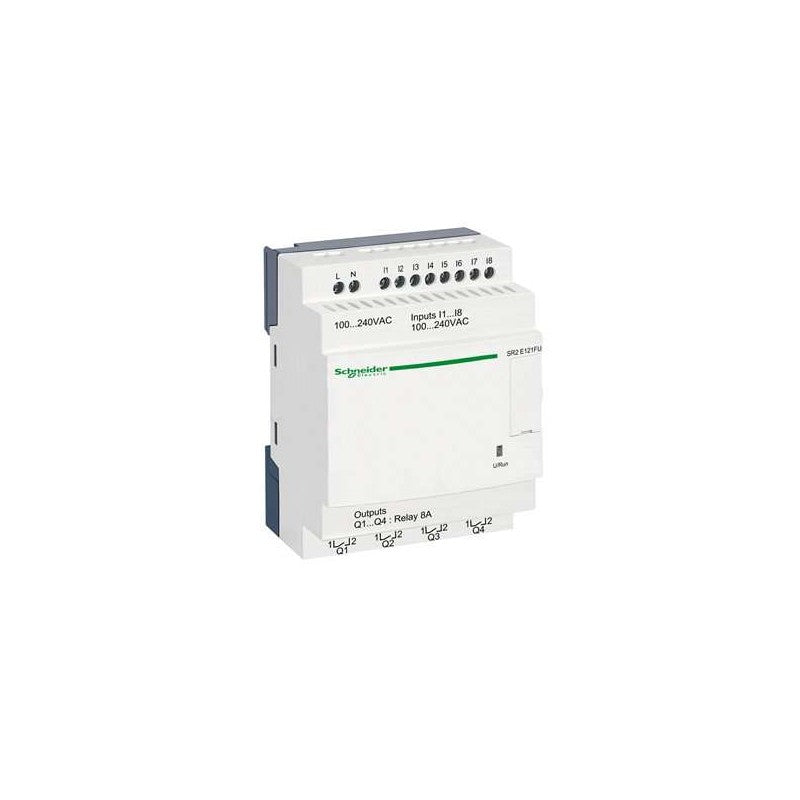

SR2E121FU Schneider Electric - Compact Smart Relay Zelio Logic - 12 I/O - 100-240V AC - with Clock - without Display. The Schneider Electric SR2E121FU is a compact smart relay from the Zelio Logic series. It features 8 discrete inputs (4 of which can be industrial as analog inputs) and 4 relay outputs, providing 12 total I/O points. The relay operates on 100-240V AC supply and includes a real-time clock for time-based automation functions. It does not include a display. It supports both Function Block Diagram (FBD) and Ladder Diagram (LD) programming and mounts on standard DIN rail with screw terminals. The module is rated IP20 on the terminal block and IP40 on the front panel, with an operating temperature range of -20 to +55 degrees Celsius. This is a Green Premium product.

• Brand: Schneider Electric
• Category: Logic Controllers
• Range of Product: Zelio Logic
• Product Type: Compact Smart Relay
• Discrete Input Channels: 8 (4 usable as analog)
• Discrete Input Voltage: 24 V DC (sink/source)
• Discrete Output Channels: 4 relay outputs
• Total I/O: 12
• Supply Voltage: 100-240 V AC
• Local Display: Without display
• Clock: With real-time clock
• Output Type: Relay (NO contacts)
• Output Thermal Current: 8 A for all 4 outputs
• Mounting Type: DIN rail
• Connection Type: Screw terminals
• Programming Languages: FBD (Function Block Diagram), LD (Ladder Diagram)
• Programming Interface: Computer, Operating Panel
• Dimensions (H x W x D): 71.2 x 107.6 x 59.5 mm
• IP Rating: IP20 (terminal block), IP40 (front panel)
• Operating Temperature: -20 to +55 degrees Celsius
• Country of Origin: France
• Sustainable Offer Status: Green Premium product

Managing simple automation systems with time-based control in industrial, building automation, and small machine applications
