Schneider Electric SR2D201FU | Relay & Timer

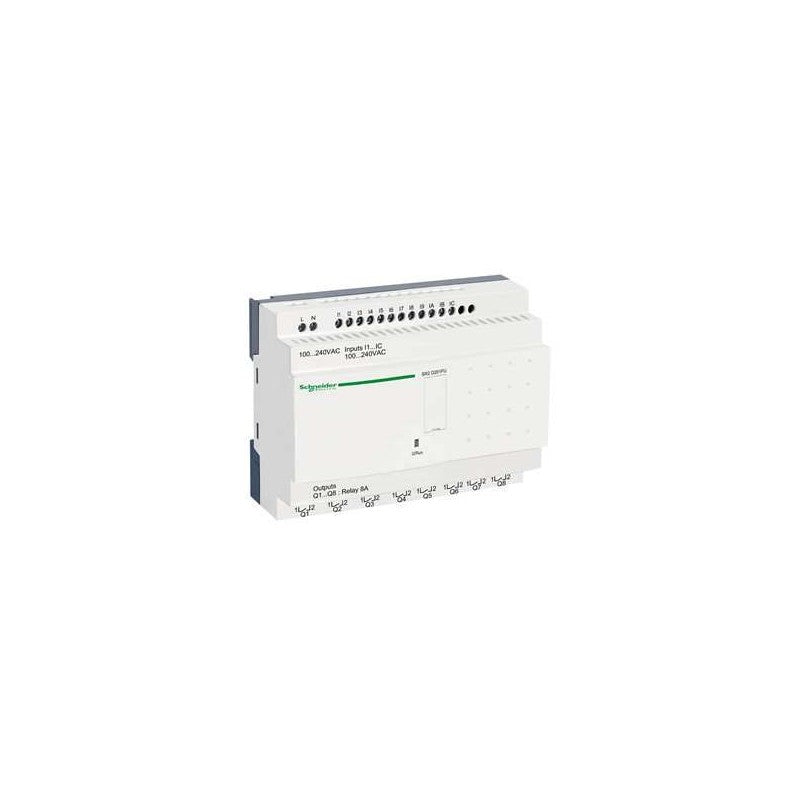

SR2D201FU Schneider Electric - Compact Smart Relay Zelio Logic - 20 I/O - 100-240V AC - no Clock - no Display - 8 Relay Outputs. The Schneider Electric SR2D201FU is a compact smart relay from the Zelio Logic SR2 series, designed for simple automation system management. It features 12 discrete inputs (100-240V AC) and 8 relay outputs, providing 20 total I/O points. The relay operates on 100-240V AC supply (50/60Hz) with a power consumption of 11VA and does not include a display or clock. It supports Function Block Diagram (FBD) and Ladder Diagram (LD) programming using the free Zelio Soft software and mounts on standard DIN rail with screw terminals. The module is rated IP20 on the terminal block and IP40 on the front panel, with an operating temperature range of -20 to +55 degrees Celsius. Built-in EEPROM flash memory provides data backup up to 10 years for easy recovery after power interruption. Relay outputs support switching voltages of 24-250V AC or 5-30V DC with an 8A thermal current rating and 10 million cycle mechanical durability.

• Brand: Schneider Electric
• Category: Logic Controllers
• Range of Product: Zelio Logic
• Product Type: Compact Smart Relay
• Discrete Input Channels: 12
• Discrete Input Voltage: 100-240 V AC
• Discrete Output Channels: 8 relay outputs
• Total I/O: 20
• Supply Voltage: 100-240 V AC
• Supply Voltage Limits: 85-264 V AC
• Supply Frequency: 50/60 Hz
• Maximum Supply Current: 100 mA at 100V AC, 50 mA at 240V AC
• Power Consumption: 11 VA
• Local Display: No
• Clock: No
• Output Type: Relay (NO contacts)
• Output Voltage: 24-250 V AC / 5-30 V DC
• Output Thermal Current: 8 A
• Rated Impulse Withstand Voltage: 4 kV
• Isolation Voltage: 1780 V
• Mounting Type: DIN rail
• Connection Type: Screw terminals
• Programming Languages: FBD, LD (Ladder)
• Programming Interface: Computer, Operating Panel
• Mechanical Durability: 10 million cycles
• Dimensions (W x H x D): 124.6 x 107.6 x 59.5 mm
• Net Weight: 0.35 kg
• IP Rating: IP20 (terminal block), IP40 (front panel)
• Operating Temperature: -20 to +55 degrees Celsius
• Standards: EN/IEC 61131-2, CE, cULus, CSA, GL, GOST, C-Tick

Managing simple automation systems with 20 I/O in industrial control, building automation, and small machine applications using AC supply without display or clock
