Schneider Electric SR2D101FU | Relay & Timer

SKU: SR2D101FU
(1)
$127.08
-13% $146.14 $127.08
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

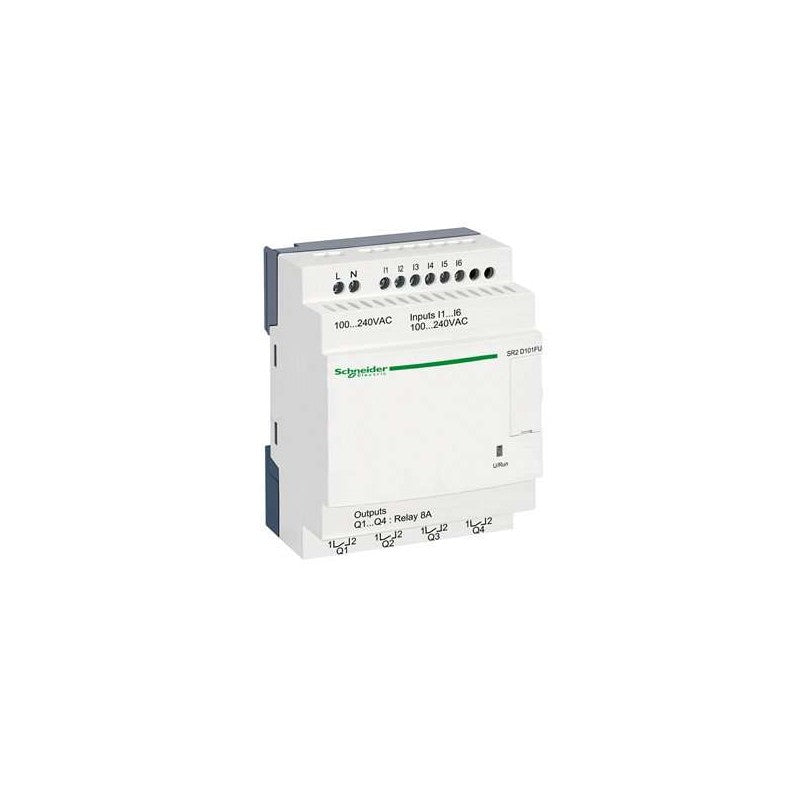

SR2D101FU Schneider Electric - Compact Smart Relay Zelio Logic - 10 I/O - 100-240V AC - without Display. The Schneider Electric SR2D101FU is a compact smart relay from the Zelio Logic series. It features 6 discrete inputs (100-240V AC) and 4 relay outputs, providing 10 total I/O points. The relay operates on 100-240V AC supply with a power consumption of 7VA and does not include a display or clock. It supports both Function Block Diagram (FBD) and Ladder Diagram (LD) programming and mounts on standard DIN rail with screw terminals. The module is rated IP20 on the terminal block and IP40 on the front panel, with an operating temperature range of -20 to +55 degrees Celsius and a 10-year backup time for program memory.

  • Brand: Schneider Electric
  • Category: Logic Controllers
  • Range of Product: Zelio Logic
  • Product Type: Compact Smart Relay
  • Discrete Input Channels: 6
  • Discrete Input Voltage: 100-240 V AC
  • Discrete Input Current: 0.6 mA
  • Discrete Output Channels: 4 relay outputs
  • Total I/O: 10
  • Supply Voltage: 100-240 V AC
  • Supply Voltage Limits: 85-264 V
  • Supply Frequency: 50/60 Hz
  • Supply Current: 80 mA at 100V, 30 mA at 240V (without extension)
  • Power Consumption: 7 VA (without extension)
  • Local Display: Without display
  • Clock: No
  • Output Type: Relay (NO contacts)
  • Output Thermal Current: 8 A for all 4 outputs
  • Output Voltage Limits: 5-30 V DC, 24-250 V AC
  • Mounting Type: DIN rail
  • Connection Type: Screw terminals
  • Programming Languages: FBD (Function Block Diagram), LD (Ladder Diagram)
  • Control Scheme Lines: 120 with Ladder, up to 200 with FBD
  • Backup Time: 10 years at 25 degrees Celsius
  • Dimensions (H x W x D): 71.2 x 107.6 x 59.5 mm
  • Net Weight: 0.22 kg
  • IP Rating: IP20 (terminal block), IP40 (front panel)
  • Operating Temperature: -20 to +55 degrees Celsius
  • Rated Impulse Withstand Voltage: 4 kV
  • Isolation Voltage: 1780 V
  • Country of Origin: France
  • EAN: 3389110549775
  • Standards: EN/IEC 61131-2, UL, CSA, GL, GOST, C-Tick

Managing simple automation systems in industrial control, building automation, and small machine applications
