Schneider Electric SR2D101BD | Relay & Timer

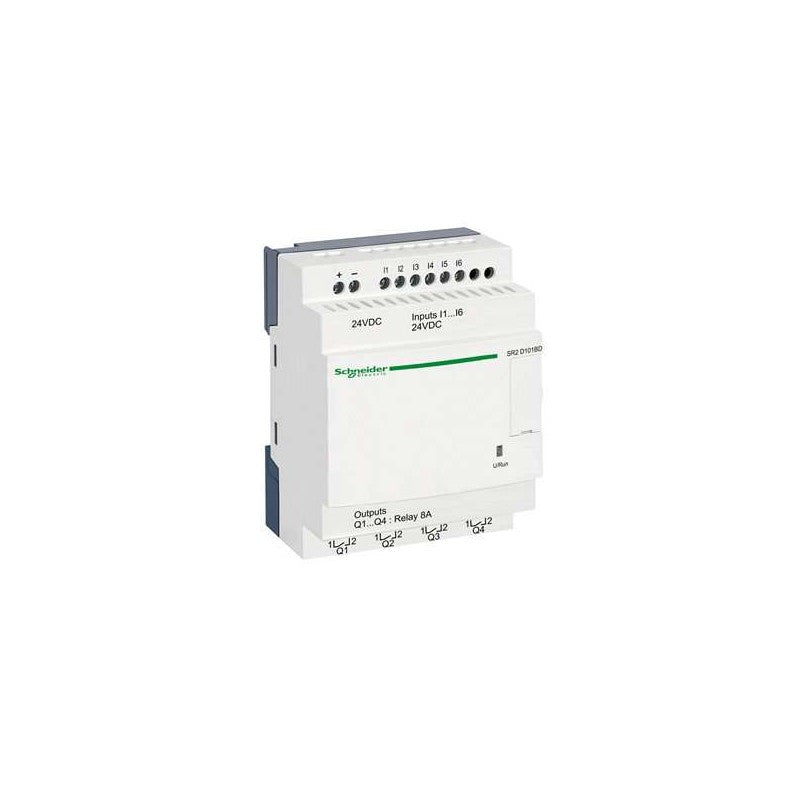

SR2D101BD Schneider Electric - Compact Smart Relay Zelio Logic - 10 I/O - 24V DC - with Display. The Schneider Electric SR2D101BD is a compact smart relay from the Zelio Logic series, designed for simple automation system management. It features 6 discrete inputs (24V DC) and 4 relay outputs, providing 10 total I/O points. The relay operates on 24V DC supply with a power consumption of 3W and includes a backlit display for on-site monitoring and programming. It supports Ladder Diagram programming and mounts on standard DIN rail. The module is rated IP20 on the terminal block and IP40 on the front panel, with an operating temperature range of -20 to +55 degrees Celsius.

• Brand: Schneider Electric
• Category: Logic Controllers
• Range of Product: Zelio Logic
• Product Type: Compact Smart Relay
• Discrete Input Channels: 6
• Discrete Input Voltage: 24 V DC
• Discrete Output Channels: 4 relay outputs
• Total I/O: 10
• Supply Voltage: 24 V DC
• Supply Voltage Limits: 19.2 to 30 V DC
• Supply Current: 100 mA (without extension)
• Power Consumption: 3 W (without extension)
• Local Display: With backlit display
• Clock: No
• Output Type: Relay (NO contacts)
• Output Thermal Current: 8 A for all 4 outputs
• Mounting Type: DIN rail
• Connection Type: Screw terminals
• Programming Languages: FBD (Function Block Diagram), LD (Ladder Diagram)
• Dimensions (H x W x D): 71.2 x 107.6 x 59.5 mm
• Net Weight: 0.22 kg
• IP Rating: IP20 (terminal block), IP40 (front panel)
• Operating Temperature: -20 to +55 degrees Celsius
• Rated Impulse Withstand Voltage: 4 kV
• Sustainable Offer Status: Green Premium product
• Standards: EN/IEC 61131-2, UL, CSA, GL, GOST, C-Tick

Managing simple automation systems in industrial control, building automation, and small machine applications
