Schneider Electric SR2B202BD | Relay & Timer

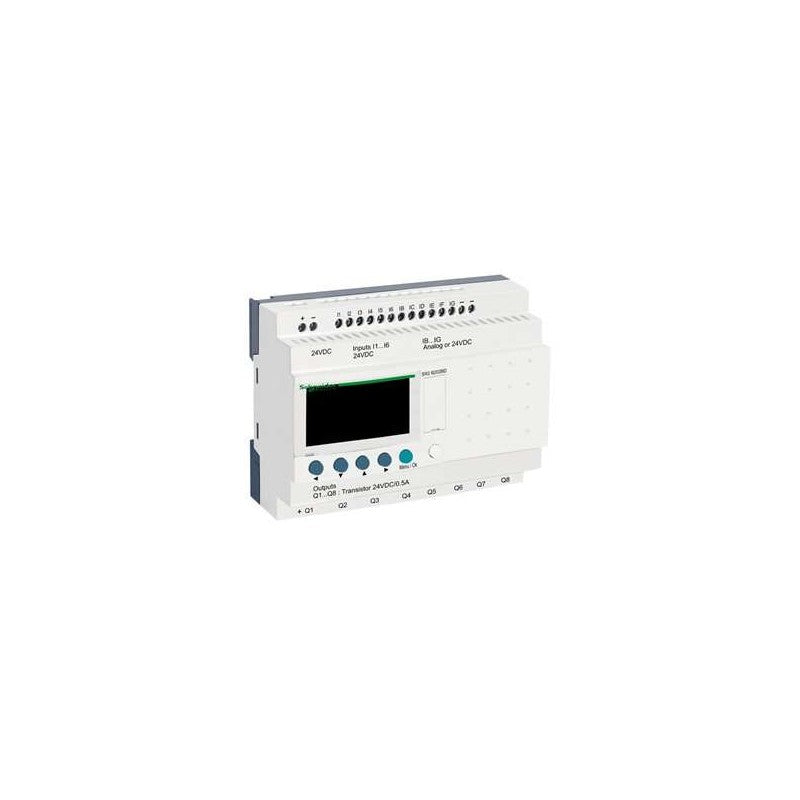

SR2B202BD Schneider Electric - Compact Smart Relay Zelio Logic - 20 I/O - 24V DC - with Clock - with Display - 8 Transistor Outputs. The Schneider Electric SR2B202BD is a compact smart relay from the Zelio Logic SR2 series, designed for simple automation system management. It features 12 discrete inputs (24V DC, 6 configurable as analog 0-10V) and 8 transistor outputs, providing 20 total I/O points. The relay operates on 24V DC supply with a low power consumption of 3W and includes both a backlit LCD display and a real-time clock. It supports Function Block Diagram (FBD), Ladder Diagram (LD), and Sequential Function Chart (SFC) programming using the free Zelio Soft software and mounts on standard DIN rail with screw terminals. The transistor outputs provide 24V DC at 0.5-0.625A per channel with built-in overload, short-circuit, and overvoltage protection. The module is rated IP20 on the terminal block and IP40 on the front panel, with an operating temperature range of -20 to +55 degrees Celsius. Built-in EEPROM flash memory provides data backup up to 10 years for easy recovery after power interruption.

• Brand: Schneider Electric
• Category: Logic Controllers
• Range of Product: Zelio Logic
• Product Type: Compact Smart Relay
• Discrete Input Channels: 12 (6 configurable as analog 0-10V)
• Discrete Input Voltage: 24 V DC
• Discrete Input Current: 4 mA
• Discrete Output Channels: 8 transistor outputs
• Total I/O: 20
• Supply Voltage: 24 V DC
• Supply Voltage Limits: 19.2-30 V DC
• Maximum Supply Current: 100 mA (without extension)
• Power Consumption: 3 W (without extension)
• Local Display: Yes (backlit LCD)
• Clock: Yes (real-time clock)
• Output Type: Transistor
• Output Voltage: 24 V DC
• Output Voltage Limits: 19.2-30 V DC
• Load Current per Output: 0.5-0.625 A
• Residual Voltage: 2 V maximum at state 1
• Output Protection: Overload, short-circuit, overvoltage
• Response Time: 1 ms or less
• Rated Impulse Withstand Voltage: 4 kV
• Reverse Polarity Protection: Yes
• Mounting Type: DIN rail
• Connection Type: Screw terminals
• Programming Languages: FBD, LD (Ladder), SFC
• Programming Interface: Computer, Operating Panel
• Dimensions (W x H x D): 124.6 x 107.6 x 59.5 mm
• Net Weight: 0.28 kg
• IP Rating: IP20 (terminal block), IP40 (front panel)
• Operating Temperature: -20 to +55 degrees Celsius
• Country of Origin: France
• Warranty: 18 months
• Standards: EN/IEC 61131-2, CE, cULus, CSA, GL, GOST, C-Tick

Managing simple automation systems with 20 I/O in industrial control, building automation, and small machine applications requiring fast transistor outputs with LCD display and real-time clock
