Schneider Electric SR2A201BD | Relay & Timer

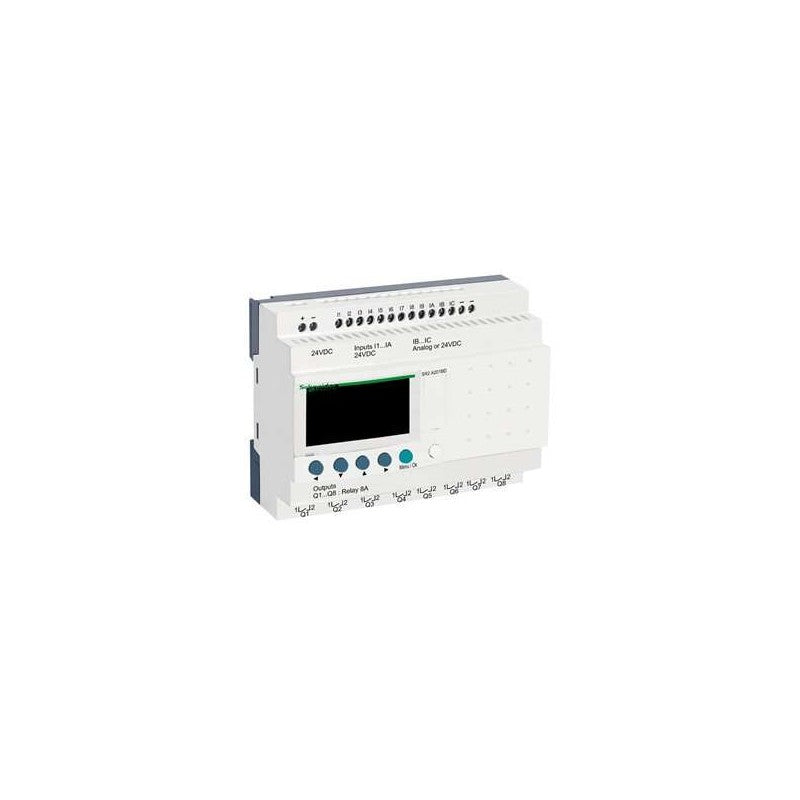

SR2A201BD Schneider Electric - Compact Smart Relay Zelio Logic - 20 I/O - 24V DC - no Clock - with Display - 8 Relay Outputs. The Schneider Electric SR2A201BD is a compact smart relay from the Zelio Logic SR2 series, designed for simple automation system management. It features 12 discrete inputs (24V DC, 2 configurable as analog 0-10V) and 8 relay outputs, providing 20 total I/O points. The relay operates on 24V DC supply with a power consumption of 6W and includes a backlit LCD display but no real-time clock. It supports Function Block Diagram (FBD) and Ladder Diagram (LD) programming using the free Zelio Soft software and mounts on standard DIN rail with screw terminals. The module is rated IP20 on the terminal block and IP40 on the front panel, with an operating temperature range of -20 to +55 degrees Celsius. Built-in EEPROM flash memory provides data backup up to 10 years for easy recovery after power interruption. Relay outputs support switching voltages of 24-250V AC or 5-30V DC with an 8A thermal current rating and 10 million cycle mechanical durability.

• Brand: Schneider Electric
• Category: Logic Controllers
• Range of Product: Zelio Logic
• Product Type: Compact Smart Relay
• Discrete Input Channels: 12 (2 configurable as analog 0-10V)
• Discrete Input Voltage: 24 V DC
• Discrete Input Current: 4 mA
• Discrete Output Channels: 8 relay outputs
• Total I/O: 20
• Supply Voltage: 24 V DC
• Supply Voltage Limits: 19.2-30 V DC
• Maximum Supply Current: 100 mA (without extension)
• Power Consumption: 6 W (without extension)
• Local Display: Yes (backlit LCD)
• Clock: No
• Output Type: Relay (NO contacts)
• Output Voltage: 24-250 V AC / 5-30 V DC
• Output Thermal Current: 8 A
• Rated Impulse Withstand Voltage: 4 kV
• Reverse Polarity Protection: Yes
• Mounting Type: DIN rail
• Connection Type: Screw terminals
• Programming Languages: FBD, LD (Ladder)
• Programming Interface: Computer, Operating Panel
• Mechanical Durability: 10 million cycles
• Dimensions (W x H x D): 124.6 x 107.6 x 59.5 mm
• Net Weight: 0.38 kg
• IP Rating: IP20 (terminal block), IP40 (front panel)
• Operating Temperature: -20 to +55 degrees Celsius
• Country of Origin: France
• Standards: EN/IEC 61131-2, CE, cULus, CSA, GL, GOST, C-Tick

Managing simple automation systems with 20 I/O in industrial control, building automation, and small machine applications with LCD display for on-site programming and monitoring
