Schneider Electric SR2A101FU | Relay & Timer

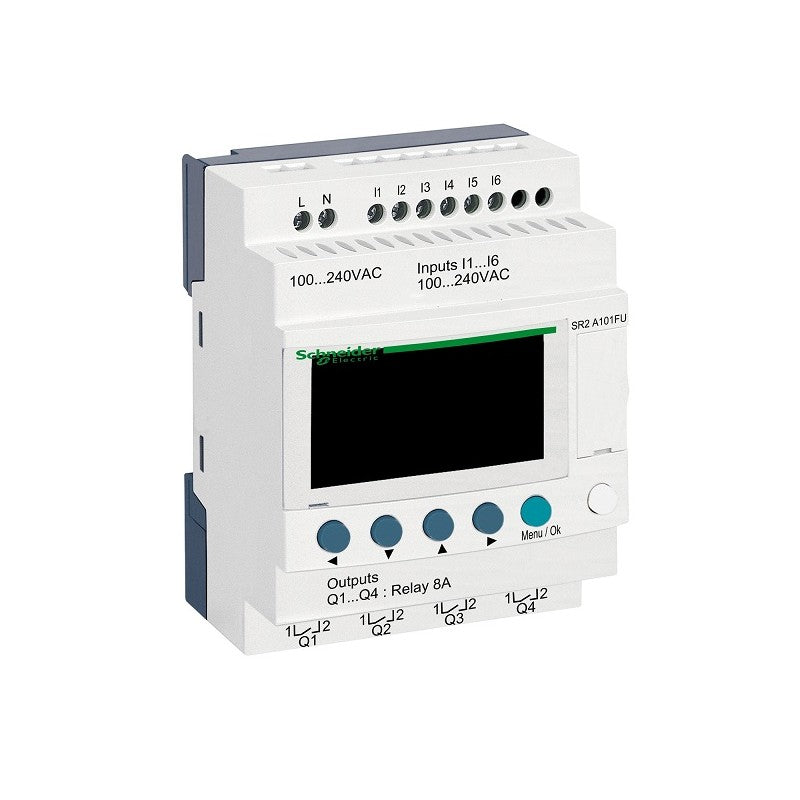

SR2A101FU Schneider Electric - Compact Smart Relay Zelio Logic - 10 I/O - 100-240V AC - with Display - no Clock. The Schneider Electric SR2A101FU is a compact smart relay from the Zelio Logic SR2 series, designed for simple automation system management. It features 6 discrete inputs (100-240V AC) and 4 relay outputs, providing 10 total I/O points. The relay operates on 100-240V AC supply with a power consumption of 7VA and includes a backlit LCD display with contextual navigation buttons for on-site programming and monitoring. It does not include a clock. It supports both Function Block Diagram (FBD) and Ladder Diagram (LD) programming and mounts on standard DIN rail with screw terminals. The module is rated IP20 on the terminal block and IP40 on the front panel, with an operating temperature range of -20 to +55 degrees Celsius. Built-in EEPROM flash memory provides data backup up to 10 years for easy recovery after power interruption.

• Brand: Schneider Electric
• Category: Logic Controllers
• Range of Product: Zelio Logic
• Product Type: Compact Smart Relay
• Discrete Input Channels: 6
• Discrete Input Voltage: 100-240 V AC
• Discrete Input Current: 0.6 mA
• Discrete Input Frequency: 47-63 Hz
• Discrete Output Channels: 4 relay outputs
• Total I/O: 10
• Supply Voltage: 100-240 V AC
• Supply Voltage Limits: 85-264 V
• Supply Frequency: 50/60 Hz
• Supply Current: 30 mA at 240V, 80 mA at 100V (without extension)
• Power Consumption: 7 VA (without extension)
• Isolation Voltage: 1780 V
• Local Display: With backlit LCD display
• Clock: No
• Output Type: Relay (NO contacts)
• Output Voltage Limits: 5-30 V DC, 24-250 V AC
• Output Thermal Current: 8 A for all 4 outputs
• Electrical Durability: 500,000 cycles (AC-12 at 230V, 1.5A)
• Mounting Type: DIN rail
• Connection Type: Screw terminals
• Programming Languages: FBD (Function Block Diagram), LD (Ladder Diagram)
• Control Scheme Lines: Up to 240 with Ladder programming
• Backup Time: 10 years at 25 degrees Celsius
• Net Weight: 0.25 kg
• IP Rating: IP20 (terminal block), IP40 (front panel)
• Operating Temperature: -20 to +55 degrees Celsius
• UPC: 785901422488
• Standards: EN/IEC 61131-2, UL, CSA, GL, GOST, C-Tick

Managing simple automation systems with on-site display and programming in industrial control, building automation, and small machine applications
