Schneider Electric LC1D09 TeSys D Contactor, 9A, AC-3, 3P

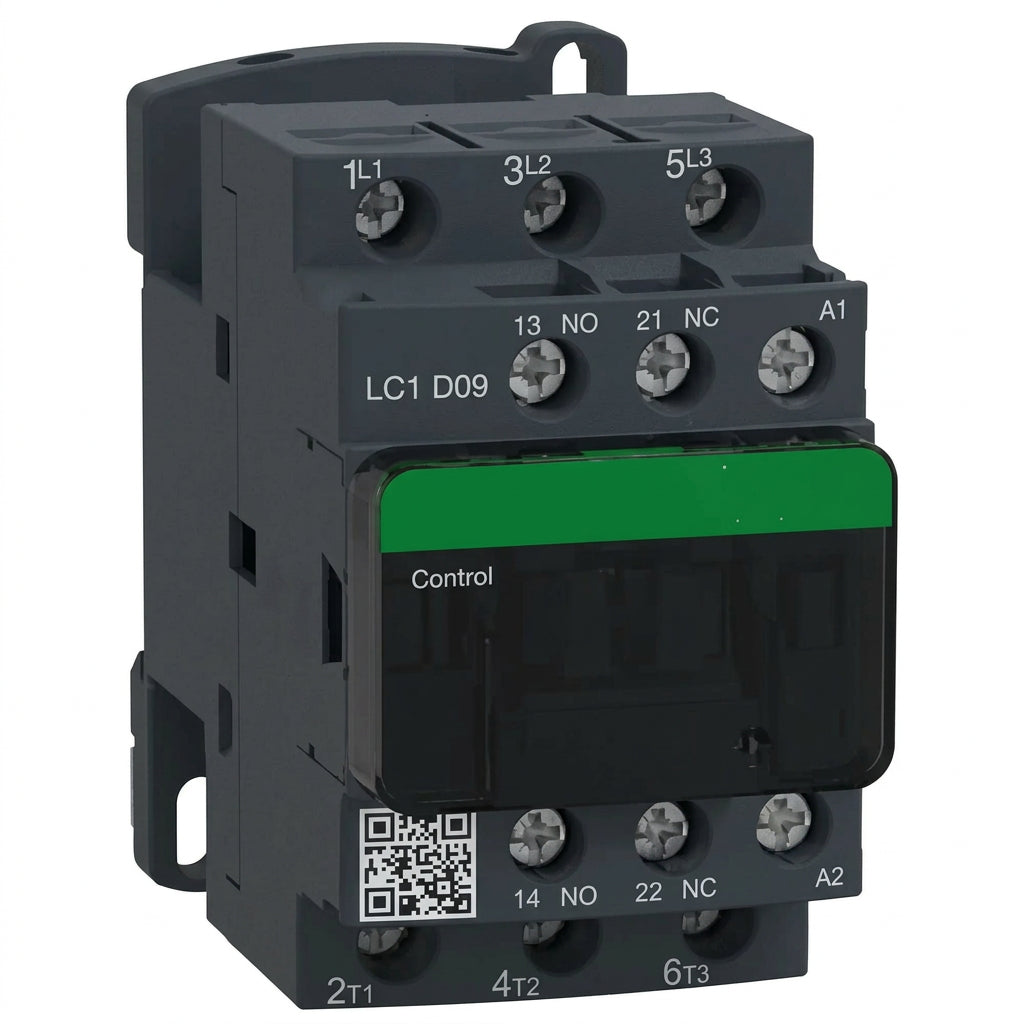

The Schneider Electric LC1D09 is a TeSys D IEC contactor, non-reversing, 3-pole (3 NO), rated 9 A AC-3 (motor phase current up to 440 V) for three-phase motor starting/stopping. Technical data sourced from the official Schneider Electric TeSys D datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit is visually inspected and functionally checked before shipment.

Key Features

  • Model: LC1D09 — TeSys D contactor
  • Contact: 3P (3 NO) · non-reversing
  • Rated: 9 A AC-3 (≤440 V) · 3-phase motor duty
  • Coil: coil voltage set by suffix (e.g. M7/N7/E7/B7)
  • Lifecycle: Active — standard TeSys D range

Technical Specifications

Official Schneider Electric Product Data — LC1D09 (TeSys D)

Technical Specifications
Product / Range TeSys D / TeSys Deca · IEC contactor, non-reversing
Number of Poles 3P (3 NO)
AC-3 Motor Phase Current 9 A (≤ 440 V)
Motor Power (AC-3) Approx. 4 kW @ 400 V · 5 hp @ 480 V
Utilisation Category AC-3 (also AC-1 / AC-4 duty)
Rated Insulation Voltage (Ui) 690 V
Coil Voltage Set by suffix — confirm (e.g. B7=24V DC, E7=48V, F7=110V, M7=220V AC, N7=415V, Q7=380V, U7=250V DC)
Application Three-phase motor starting / stopping, machine control
Availability Status Active (in production) — standard TeSys D range
Model note: The listing model LCIDO9 is the Schneider TeSys D contactor LC1D09 (letters I/O are O/1 mis-typing) — 9 A AC-3, 3-pole, non-reversing. This is an electromechanical contactor, not a drive or soft starter. Confirm the coil-voltage suffix (e.g. LC1D09M7 = 220 V AC coil, LC1D09N7 = 415 V AC) before ordering to match your control circuit.

Compatibility & Accessories

TeSys D / TeSys Deca family. Compatible with TeSys D thermal overload relays (LRD series) and auxiliary contact blocks (LADN/LAD series). This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Three-phase motor starting and stopping up to 9 A (AC-3)
  • Machine tools, conveyors, pumps, compressors and HVAC equipment
  • Panel building and motor control centres (MCC)

Warranty & Shipping

  • Availability: Stock and condition vary; contact us for real-time stock status and tested condition.
  • Inspection & testing: contact us for product condition and any available inspection or test records before ordering.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard delivery to the United States and Canada about 5-8 business days, express available, free shipping over $500.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Schneider Electric part LC1D09 is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is the LC1D09?

A: A Schneider Electric TeSys D IEC contactor, 3-pole, 9 A AC-3, non-reversing, for three-phase motors.

Q: Is it still in production?

A: Yes — LC1D09 is part of the active TeSys D / TeSys Deca range.

Q: Is it a contactor or a drive?

A: An electromechanical contactor.

Q: What coil voltage?

A: Set by the suffix — confirm the coil voltage before ordering (e.g. M7 = 220 V AC).
