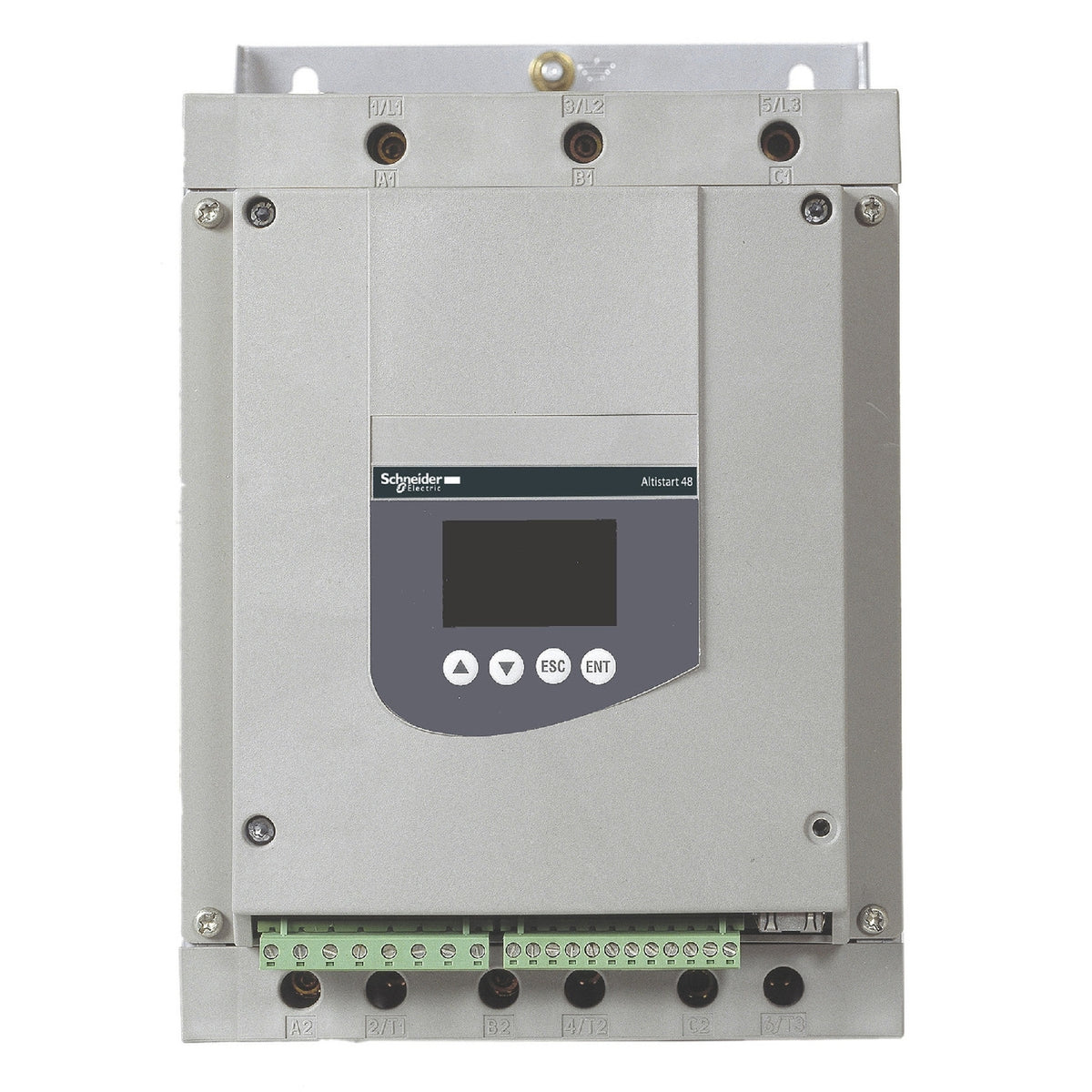

Schneider Electric ATS48D62Q Altistart 48 Soft Starter, 62A, 400V

The Schneider Electric ATS48D62Q is an Altistart 48 (Altivar) soft starter for asynchronous motors, rated up to 62 A at 230…415 V AC. Built on 6 thyristors with the patented Torque Control System (TCS), it provides torque-controlled soft start/stop, motor thermal protection and a built-in Modbus RS-485 port. Technical data sourced from the official Schneider Electric datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit is visually inspected and functionally checked before shipment.

Key Features

  • Model: ATS48D62Q — Altistart 48 soft starter
  • Rated Current: up to 62 A · Supply 230…415 V AC, 50/60 Hz
  • Motor Power: up to 55 kW (400 V, in-delta, standard duty)
  • Control: 6-thyristor torque control (TCS) · built-in Modbus RS-485
  • Lifecycle: Discontinued — replaced by ATS480

Technical Specifications

Official Schneider Electric Product Data — ATS48D62Q

Technical Specifications
Product / Range Altistart 48 (Altivar) · soft starter for asynchronous motors
Rated Current Up to 62 A
Supply Voltage 230…415 V AC -15…10 % · 50…60 Hz -5…5 %
Motor Power (kW std/severe, line) 400V: 30/22 kW · 230V: 15/11 kW (in motor supply line)
Motor Power (kW std/severe, delta) 400V: 55/45 kW · 230V: 30/22 kW (connected to motor delta terminals)
Thyristor Control 6 thyristors · patented Torque Control System (TCS)
Usage Category AC-53A
Protection Phase failure · motor thermal protection · starter thermal protection
Inputs / Outputs Logic: Stop, Run, LI3, LI4, PTC · relay R1/R2/R3 · analogue AO 0-20/4-20 mA
Communications Built-in Modbus · 1 RJ45 · RS485 multidrop · 4800/9600/19200 bps · Ethernet/Profibus DP/Fipio/DeviceNet via module
Dimensions / Weight 190(W) × 290(H) × 235(D) mm · approx. 8.3 kg
Certifications CE, UL, CSA, DNV, CCC, C-Tick, GOST, NOM, SEPRO, TCF · IEC/EN 60947-4-2
Operating Temp / Altitude -10…40 °C (no derating) · ≤1000 m (no derating)
Availability Status Discontinued (production ended, end-of-service 31 Dec 2030)
Model note: ATS48D62Q-v5293: the -v5293 is a seller SKU/batch code, not an official Schneider suffix. The product is the Altistart 48 62 A soft starter (400 V class, Q variant), official part ATS48D62Q. It is a soft starter, not a variable-speed drive.
Recommended replacement: Schneider Electric designates ATS480D62Y — Altivar Soft Starter ATS480, 62 A, 208…690 V AC as the direct successor to the discontinued ATS48 62 A model. Contact us for ATS480 migration support.

Compatibility & Cross-References

Altistart 48 series (ATS48D 11…170 A, 230-415 V / 208-690 V variants). Connected in-line or inside the delta. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Soft start/stop of pumps, fans, compressors and conveyors
  • Centrifugal machines, construction, food/beverage and chemical applications
  • Spare/obsolete replacement for installed ATS48 installations

Warranty & Shipping

  • Availability: Stock and condition vary; contact us for real-time stock status and tested condition.
  • Inspection & testing: contact us for product condition and any available inspection or test records before ordering.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard delivery to the United States and Canada about 5-8 business days, express available, free shipping over $500.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Schneider Electric part ATS48D62Q is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is the ATS48D62Q?

A: A Schneider Electric Altistart 48 soft starter, up to 62 A, 230…415 V AC.

Q: Is it still in production?

A: No — production ended (12 Jul 2023); successor is ATS480D62Y.

Q: Is it a soft starter or VSD?

A: A soft starter (6-thyristor torque control), not a variable-speed drive.

Q: Communications?

A: Built-in Modbus RS-485 (RJ45); Ethernet/Profibus DP/Fipio/DeviceNet via module.
