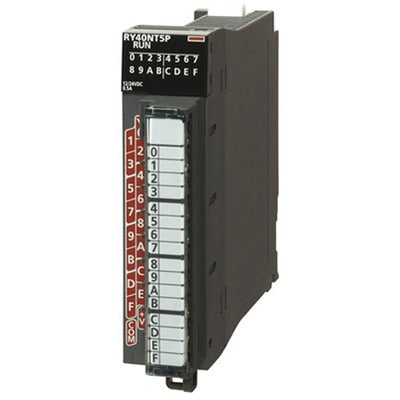

MELSEC iQ-R Series RY40NT5P
| Output specifications | / Transistor output (sink type) |
| Output type | 16 points |
| Number of output points | 12/24 V DC (allowable voltage range: 10.2...28.8 V DC) |
| Rated load voltage | 0.5 A/point, Pilot Duty, 5 A/common |
| Maximum load current | Current is limited by the overload protection function. |
| Maximum inrush current | 0.1 mA or less |
| Leakage current at OFF | 0.2 V DC (TYP.) 0.5 A, 0.3 V DC (MAX.) 0.5 A |
| Maximum voltage drop at ON | 0.5 ms or less |
| Output response time - OFF to ON | 1 ms or less (rated load, resistive load) |
| Output response time - ON to OFF | Zener diode |
| Surge suppressor | None |
| Fuse | Available |
| Protection function - Overheat protection function | Available |
| Protection function - Overload protection function | 12/24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC) |
| External power supply - Voltage | 4 mA TYP. (at 24 V DC), 9 mA MAX. (at 24 V DC) |
| External power supply - Current | 16 points/common |
| Output common terminal arrangement | / 510 V AC rms for 1 minute |
| Common specifications | 10 MΩ or higher by insulation resistance tester |
| Dielectric withstand voltage | IP2X |
| Insulation resistance | 18-point terminal block (M3 screw) |
| Protection degree | 16 points (I/O assignment: Output 16 points) |
| External interface - | 140 mA (TYP. all points ON) |
| Number of occupied I/O points | 106 mm (base unit mounting side: 98 mm) |
| Internal current consumption (5 V DC) | 27.8 mm |
| External dimensions - Height | 131 mm |
| External dimensions - Width | 0.16 kg |
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
Current is limited by the overload protection function.
