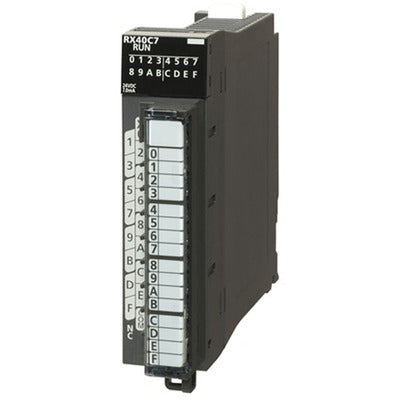

MELSEC iQ-R Series RX40C7
| Input specifications | / DC input (positive/negative shared common type) |
| Input type | 16 points |
| Number of input points | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| Rated input voltage | 7.0 mA TYP. (24 V DC) |
| Rated input current | 15 V or more/4 mA or more |
| ON voltage/ON current | 8 V or less/2 mA or less |
| OFF voltage/OFF current | 3.3 kΩ |
| Input resistance | 0.1 ms, 0.2 ms, 0.4 ms, 0.6 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms |
| Input response time - OFF to ON | 0.35 ms, 0.4 ms, 0.5 ms, 0.7 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms |
| Input response time - ON to OFF | 16 points/common |
| Input common terminal arrangement | Available (set by module parameters) |
| Interrupt function | / 510 V AC rms for 1 minute |
| Common specifications | 10 MΩ or higher by insulation resistance tester |
| Dielectric withstand voltage | IP2X |
| Insulation resistance | 18-point terminal block (M3 screw) |
| Protection degree | 16 points (I/O assignment: Input 16 points) |
| External interface - | 120 mA |
| Number of occupied I/O points | 106 mm (base unit mounting side: 98 mm) |
| Internal current consumption (5 V DC) | 27.8 mm |
| External dimensions - Height | 131 mm |
| External dimensions - Width | 0.16 kg |
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
