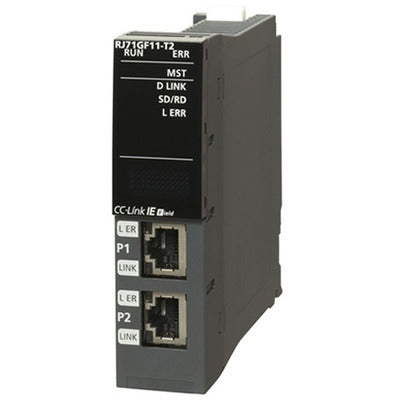

MELSEC iQ-R Series RJ71GF11-T2
| Maximum number of link points per network - RX | 16K points (16384 points, 2K bytes) |
| Maximum number of link points per network - RY | 16K points (16384 points, 2K bytes) |
| Maximum number of link points per network - RWr | 8K points (8192 points, 16K bytes) |
| Maximum number of link points per network - RWw | 8K points (8192 points, 16K bytes) |
| Maximum number of link points per station - Manager station - RX | 16K points (16384 points, 2K bytes) |
| Maximum number of link points per station - Manager station - RY | 16K points (16384 points, 2K bytes) |
| Maximum number of link points per station - Manager station - RWr | 8K points (8192 points, 16K bytes) |
| Maximum number of link points per station - Manager station - RWw | 8K points (8192 points, 16K bytes) |
| Maximum number of link points per station - Local station - RX | 2K points (2048 points, 256K bytes) |
| Maximum number of link points per station - Local station - RY | 2K points (2048 points, 256K bytes) |
| Maximum number of link points per station - Local station - RWr | 1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed" |
| Maximum number of link points per station - Local station - RWw | 1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed" |
| Safety communication function - Maximum number of safety connections per network | 1814 connections For the system with the SIL2 Process CPU: 120 connections |
| Safety communication function - Maximum number of safety connections per station | 120 connections |
| Safety communication function - Maximum number of safety connections per the same communication destination station | 1 connection For the system with the SIL2 Process CPU: 32 connections |
| Safety communication function - Maximum number of link points per safety connection | input: 8 words output: 8 words |
| Transient transmission capacity | Maximum 1920 bytes |
| Communication speed | 1 Gbps |
| Network topology | Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology |
| Communication cable | Ethernet cable which satisfies 1000BASE-T standard: Category 5e or higher, straight cable (double shielded, STP) |
| Maximum station-to-station distance | 100 m (conforms to ANSI/TIA/EIA-568-B (Category 5e)) |
| Overall cable distance | Line topology: 12000 m (when 121 stations are connected) Star topology: Depends on the system configuration Ring topology: 12100 m (when 121 stations are connected) |
| Number of cascade connections | 20 levels maximum |
| Maximum number of connectable stations | 121 stations (manager station: 1, device station: 120) |
| Maximum number of networks | 239 |
| Communication method | Token passing |
| Number of occupied I/O points | 32 points |
| Internal current consumption (5 V DC) | 0.82 A |
| External dimensions - Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions - Width | 27.8 mm |
| External dimensions - Depth | 110 mm |
| Weight | 0.17 kg |
| General specifications | Refer to the general specifications of the CPU module. |
