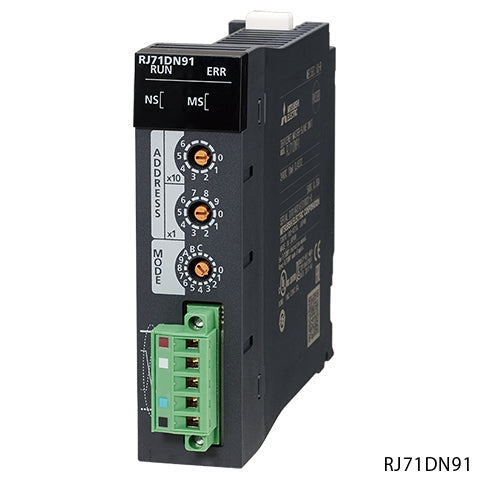

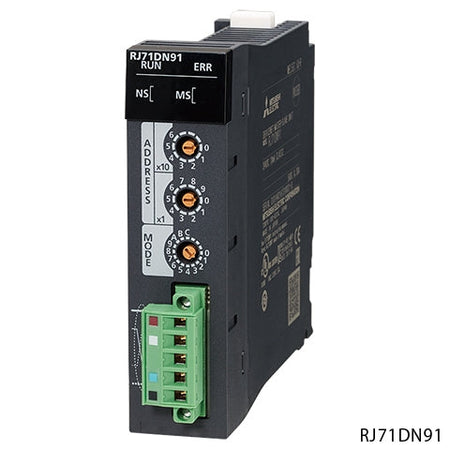

MELSEC iQ-R Series RJ71DN91
| Master function - Node type | DeviceNet master (Group 2 only client) |
| Master function - Node No. | 0...63 |
| Master function - Number of connections - Message connection | 63 |
| Master function - Number of connections - I/O connection | 63 (polling, bit strobe, change of state, cyclic) |
| Master function - Communication data size - I/O communication (Send) | Maximum 4096 points (512 bytes), maximum 256 bytes per node |
| Master function - Communication data size - I/O communication (Receive) | Maximum 4096 points (512 bytes), maximum 256 bytes per node |
| Master function - Communication data size - Message communication (Send) | Maximum 240 bytes |
| Master function - Communication data size - Message communication (Receive) | Maximum 240 bytes |
| Slave function - Node type | DeviceNet slaves (Group 2 server) |
| Slave function - Node No. | 0...63 |
| Slave function - Number of connections - I/O connection | 1 (polling) |
| Slave function - Communication data size - I/O communication (Send) | Maximum 1024 points (128 bytes) |
| Slave function - Communication data size - I/O communication (Receive) | Maximum 1024 points (128 bytes) |
| Communication speed | Selectable from 125 kbaud, 250 kbaud and 500 kbaud. |
| Maximum cable length | The maximum cable length complies with THE CIP NETWORKS LIBRARY Volume 3 DeviceNet Adaptation of CIP Edition 1.14. |
| Current consumption required on the network | 5 mA |
| Number of occupied I/O points | 32 points |
| Internal current consumption (5 V DC) | 0.30 A |
| External dimensions - Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions - Width | 27.8 mm |
| External dimensions - Depth | 118.5 mm |
| Weight | 0.15 kg |
| General specifications | Refer to the general specifications of the CPU module. |
