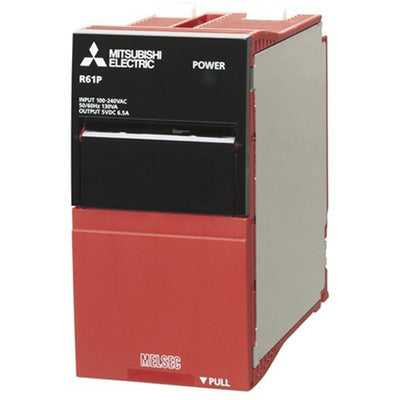

MELSEC iQ-R Series R61P
| Input power supply voltage | 100...240 V AC (85...264 V AC) |
| Input frequency | 50/60 Hz ±5 % |
| Input voltage distortion | Within 5 % |
| Maximum input apparent power | 130 VA |
| Inrush current | 20 A, within 8 ms |
| Rated output current - 5 V DC | 6.5 A |
| Overcurrent protection - 5 V DC | 7.1 A or more |
| Overvoltage protection - 5 V DC | 5.5...6.5 V |
| Efficiency | 76 % or more |
| Allowable momentary power failure time | Within 20 ms |
| Withstand voltage | 2300 V AC rms per minute (altitude 0...2000 m), between all input & LG terminals and all output & FG terminals |
| Insulation resistance | 10 MΩ or higher between all input & LG terminals, all output & FG terminals, all input terminals and LG terminal, between all output terminals and FG terminal (500 V DC insulation resistance tester) |
| Fuse | Built-in (user-unchangeable) |
| Contact output section - Application | ERR contact |
| Contact output section - Rated switching voltage/current | 24 V DC, 0.5 A |
| Contact output section - Minimum switching load | 5 V DC, 1 mA |
| Contact output section - Response time - OFF to ON | 10 ms or less |
| Contact output section - Response time - ON to OFF | 12 ms or less |
| Contact output section - Life - Mechanical | 20 million times or more |
| Contact output section - Life - Electrical | Rated switching voltage/current load: 100 thousand times or more |
| Contact output section - Surge suppressor | None |
| Contact output section - Fuse | None |
| External dimensions - Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions - Width | 54.6 mm |
| External dimensions - Depth | 110 mm |
| Weight | 0.41 kg |
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
