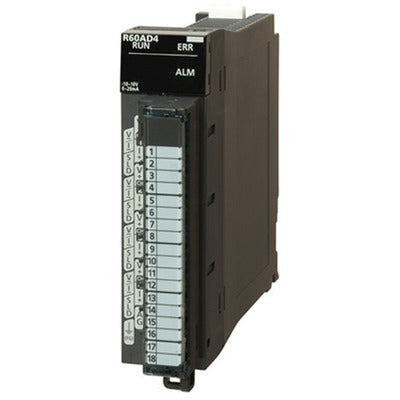

MELSEC iQ-R Series R60AD4
| Input specifications | / 4 points (4 channels) |
| Number of analog input points | -10...10 V DC (input resistance 1 MΩ) |
| Analog input - Voltage | 0...20 mA DC (input resistance 250 Ω) |
| Analog input - Current | 16-bit signed binary value (-32768...32767) |
| Digital output | Digital output value (resolution) |
| I/O characteristics, resolution - Input range | 0...32000 (312.5 µV) |
| I/O characteristics, resolution - Voltage input - 0...10 V | 0...32000 (156.3 µV) |
| I/O characteristics, resolution - Voltage input - 0...5 V | 0...32000 (125.0 µV) |
| I/O characteristics, resolution - Voltage input - 1...5 V | -8000...32000 (125.0 µV) |
| I/O characteristics, resolution - Voltage input - 1...5 V (extended mode) | -32000...32000 (312.5 µV) |
| I/O characteristics, resolution - Voltage input - -10...10 V | -32000...32000 (47.7 µV) |
| I/O characteristics, resolution - Voltage input - User range setting | 0...32000 (625.0 nA) |
| I/O characteristics, resolution - Current input - 0...20 mA | 0...32000 (500.0 nA) |
| I/O characteristics, resolution - Current input - 4...20 mA | -8000...32000 (500.0 nA) |
| I/O characteristics, resolution - Current input - 4...20 mA (extended mode) | -32000...32000 (190.7 nA) |
| I/O characteristics, resolution - Current input - User range setting | Within ±0.1 % |
| Accuracy (accuracy relative to maximum value of the digital output value) - Ambient temperature: 25±5 ﾟC | Within ±0.3 % |
| Accuracy (accuracy relative to maximum value of the digital output value) - Ambient temperature: 0...55 ﾟC | 80 µs/channel |
| A/D conversion speed | ±15 V |
| Absolute maximum input - Voltage | ±30 mA |
| Absolute maximum input - Current | / Between I/O terminals and programmable controller power supply: Photocoupler Between input channels: Non-isolation |
| Common specifications | Between I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute |
| Isolation method | Between I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher |
| Dielectric withstand voltage | 18-point terminal block (M3 screw) |
| Insulation resistance | 16 points (I/O assignment: Intelligent 16 points) |
| External interface - | 0.22 A |
| Number of occupied I/O points | 106 mm (base unit mounting side: 98 mm) |
| Internal current consumption (5 V DC) | 27.8 mm |
| External dimensions - Height | 131 mm |
| External dimensions - Width | 0.17 kg |
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
