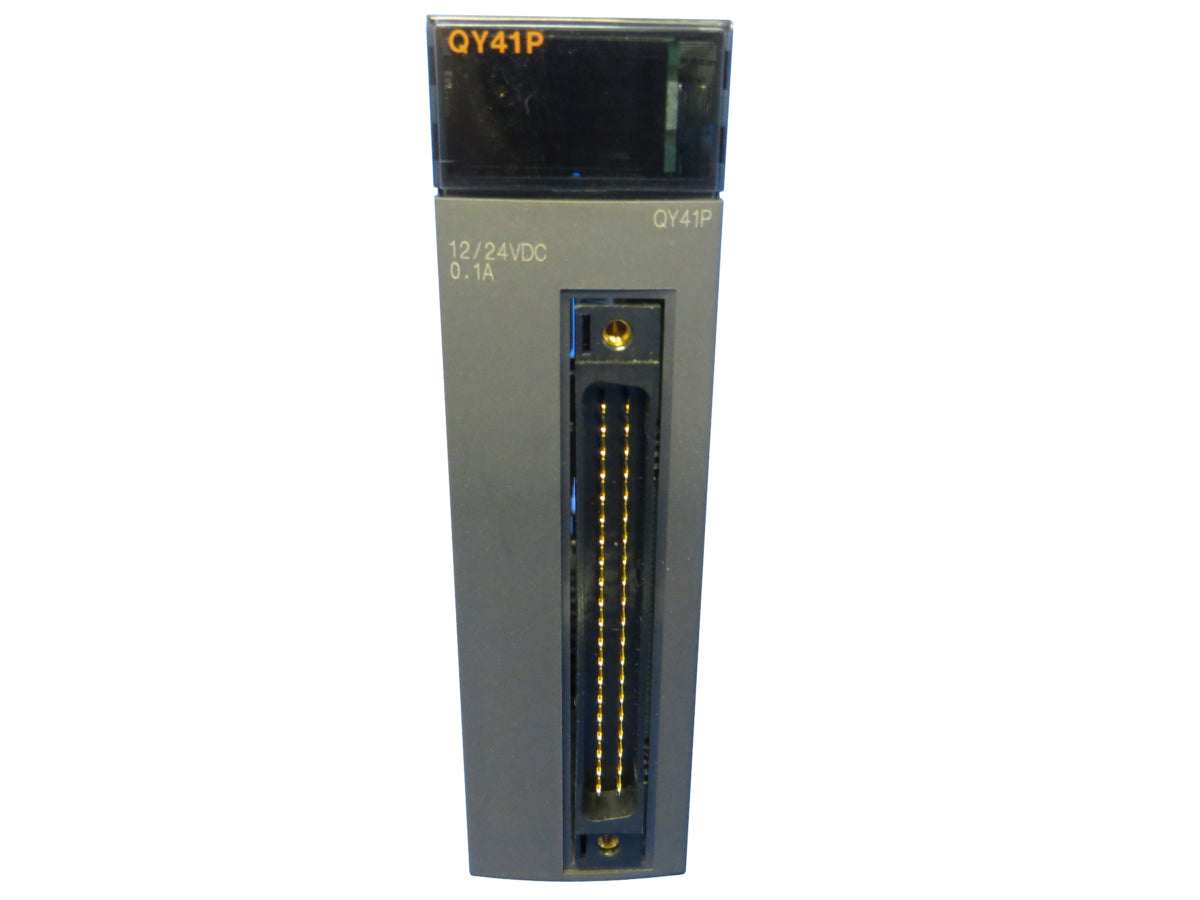

MELSEC-Q Series QY41P
| Output specifications | / Transistor output (sink type) |
| Output type | 32 points |
| Number of output points | 12...24 V DC (+20/-15 %) |
| Rated load voltage | 0.1 A/point, 2 A/common |
| Maximum load current | 0.7 A, 10 ms or less |
| Maximum inrush current | 0.1 mA or less |
| Leakage current at OFF | 0.1 V DC (TYP.) 0.1 A, 0.2 V DC (MAX.) 0.1 A |
| Maximum voltage drop at ON | 1 ms or less |
| Output response time - OFF to ON | 1 ms or less (rated load, resistive load) |
| Output response time - ON to OFF | Zener diode |
| Surge suppressor | None |
| Fuse | Available |
| Protection function - Overheat protection function | Available |
| Protection function - Overload protection function | 12...24 V DC (+20/-15 %) (ripple ratio within 5 %) |
| External power supply - Voltage | 20 mA (at 24 V DC) |
| External power supply - Current | 32 points/common |
| Output common terminal arrangement | / Photocoupler |
| Common specifications | 560 V AC rms/3 cycles (altitude 2000 m) |
| Isolation method | 10 MΩ or higher by insulation resistance tester |
| Dielectric withstand voltage | IP2X |
| Insulation resistance | ON indication (LED) |
| Protection degree | 40-pin connector |
| Operation indication | A6CON1, A6CON2, A6CON3, A6CON4 (sold separately) |
| External interface - | 32 points (I/O assignment: Output 32 points) |
| External interface - Applicable connector | 105 mA (TYP. all points ON) |
| Number of occupied I/O points | 98 mm |
| Internal current consumption (5 V DC) | 27.4 mm |
| External dimensions - Height | 90 mm |
| External dimensions - Width | 0.15 kg |
| General specifications | Refer to the general specifications of the CPU module. |
