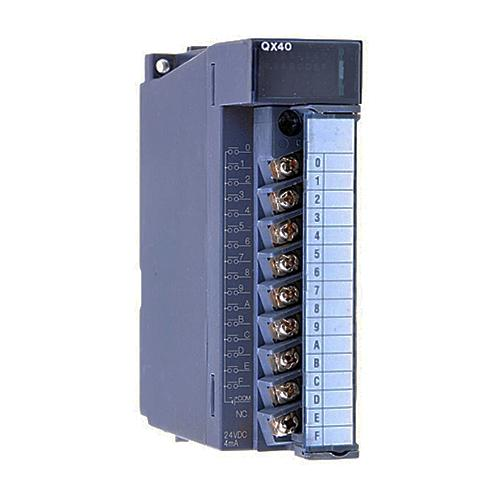

MELSEC-Q Series QX40
| Input specifications | / DC input (positive common type) |
| Input type | 16 points |
| Number of input points | 24 V DC (+20/-15 %, ripple ratio within 5 %) |
| Rated input voltage | Approx. 4 mA |
| Rated input current | 100 % |
| Maximum number of simultaneous input points | 19 V or more/3 mA or more |
| ON voltage/ON current | 11 V or less/1.7 mA or less |
| OFF voltage/OFF current | Approx. 5.6 kΩ |
| Input resistance | 1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less |
| Input response time - OFF to ON | 1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less |
| Input response time - ON to OFF | 16 points/common |
| Input common terminal arrangement | / Photocoupler |
| Common specifications | 560 V AC rms/3 cycles (altitude 2000 m) |
| Isolation method | 10 MΩ or higher by insulation resistance tester |
| Dielectric withstand voltage | IP2X |
| Insulation resistance | ON indication (LED) |
| Protection degree | 18-point terminal block (M3 screw) |
| Operation indication | 16 points (I/O assignment: Input 16 points) |
| External interface - | 50 mA (TYP. all points ON) |
| Number of occupied I/O points | 98 mm |
| Internal current consumption (5 V DC) | 27.4 mm |
| External dimensions - Height | 90 mm |
| External dimensions - Width | 0.16 kg |
| General specifications | Refer to the general specifications of the CPU module. |
