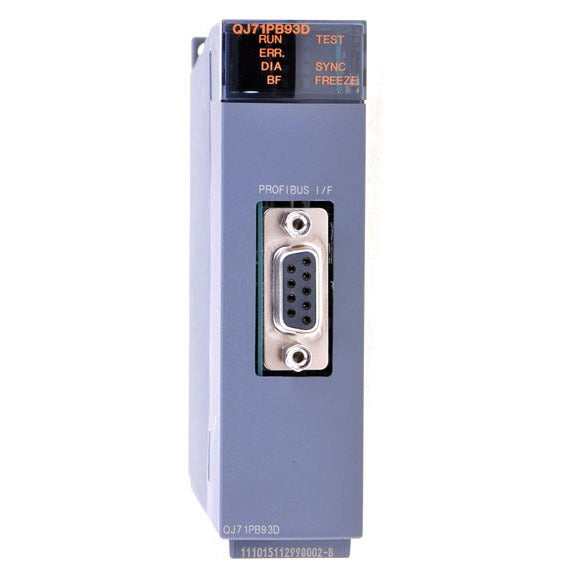

MELSEC-Q Series QJ71PB93D
| PROFIBUS-DP station type | Slave station (Complies with EN50170 Volume2 (Part 1, 2, 3, 4, 8)) |
| Station numbers that may be set | 0...125 |
| Maximum number of data that may be communicated | Number of I/O data is 192 words in total. (Size of I/O data is up to 122 words.) |
| Transmission specifications - Electrical standard/characteristics | EIA. RS485 compliant |
| Transmission specifications - Medium | Shielded twisted pair cable |
| Transmission specifications - Data link method | Polling method |
| Transmission specifications - Encoding method | NRZ |
| Transmission specifications - Transmission speed | 9.6 kbps...12 Mbps |
| Transmission specifications - Maximum number of repeaters | 3 repeaters |
| Transmission specifications - Number of connectable modules (Per segment) | 32 per segment (including repeater(s)) |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.44 A |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 27.4 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.11 kg |
| General specifications | Refer to the general specifications of the CPU module. |
Number of I/O data is 192 words in total. (Size of I/O data is up to 122 words.)
