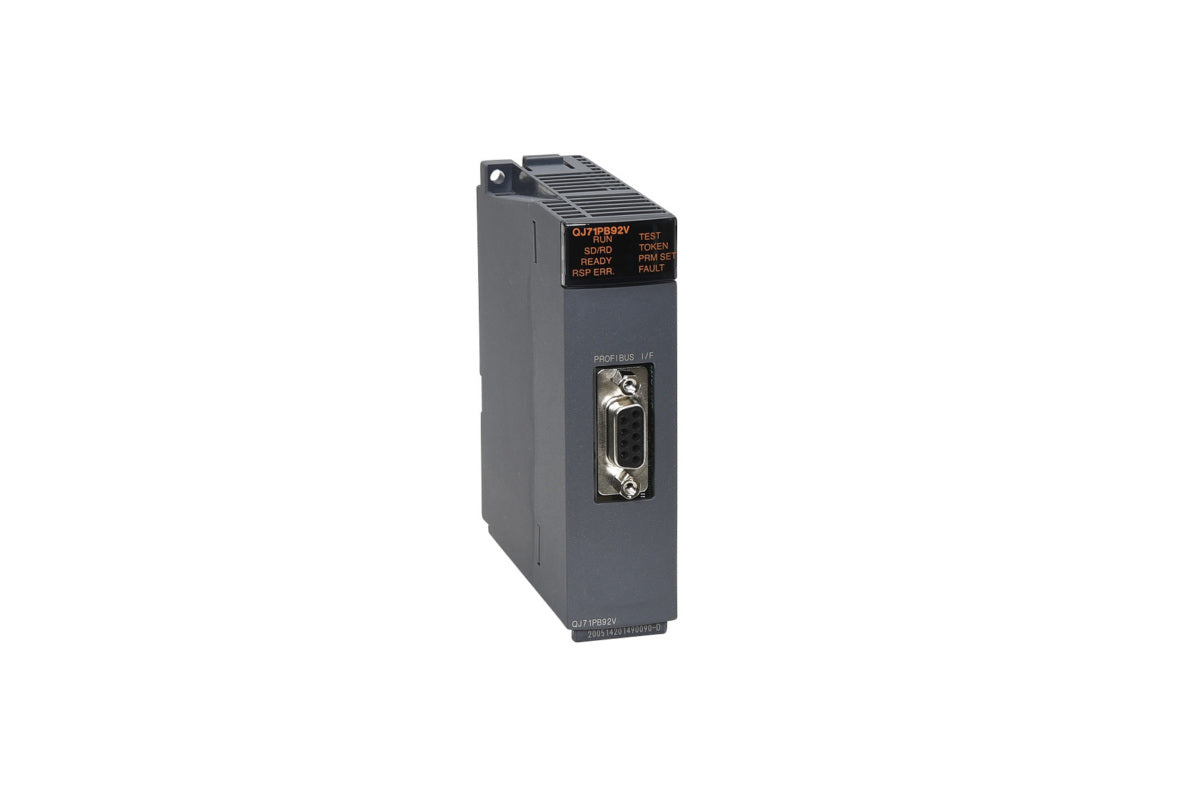

MELSEC-Q Series QJ71PB92V
| PROFIBUS-DP station type | DP-Master (Class 1) |
| Transmission specifications - Electrical standard/characteristics | EIA-RS485 compliant |
| Transmission specifications - Medium | Shielded twisted pair cable |
| Transmission specifications - Data link method | • Between DP-Master and DP-Slave: Polling method |
| Transmission specifications - Encoding method | NRZ |
| Transmission specifications - Transmission speed | 9.6 kbps...12 Mbps |
| Transmission specifications - Maximum number of repeaters | 3 repeaters |
| Transmission specifications - Number of connectable modules (Per segment) | 32 per segment (including repeater(s)) |
| Transmission specifications - Number of connectable modules (Per network) | 126 per network (total of DP-Masters and DP-Slaves) |
| Transmission specifications - Maximum number of DP-Slaves | 125 per QJ71PB92V |
| Transmission specifications - I/O data size - Input data | Maximum 8192 bytes (Maximum 244 bytes per DP-Slave) |
| Transmission specifications - I/O data size - Output data | Maximum 8192 bytes (Maximum 244 bytes per DP-Slave) |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.57 A |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 27.4 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.13 kg |
| General specifications | Refer to the general specifications of the CPU module. |
