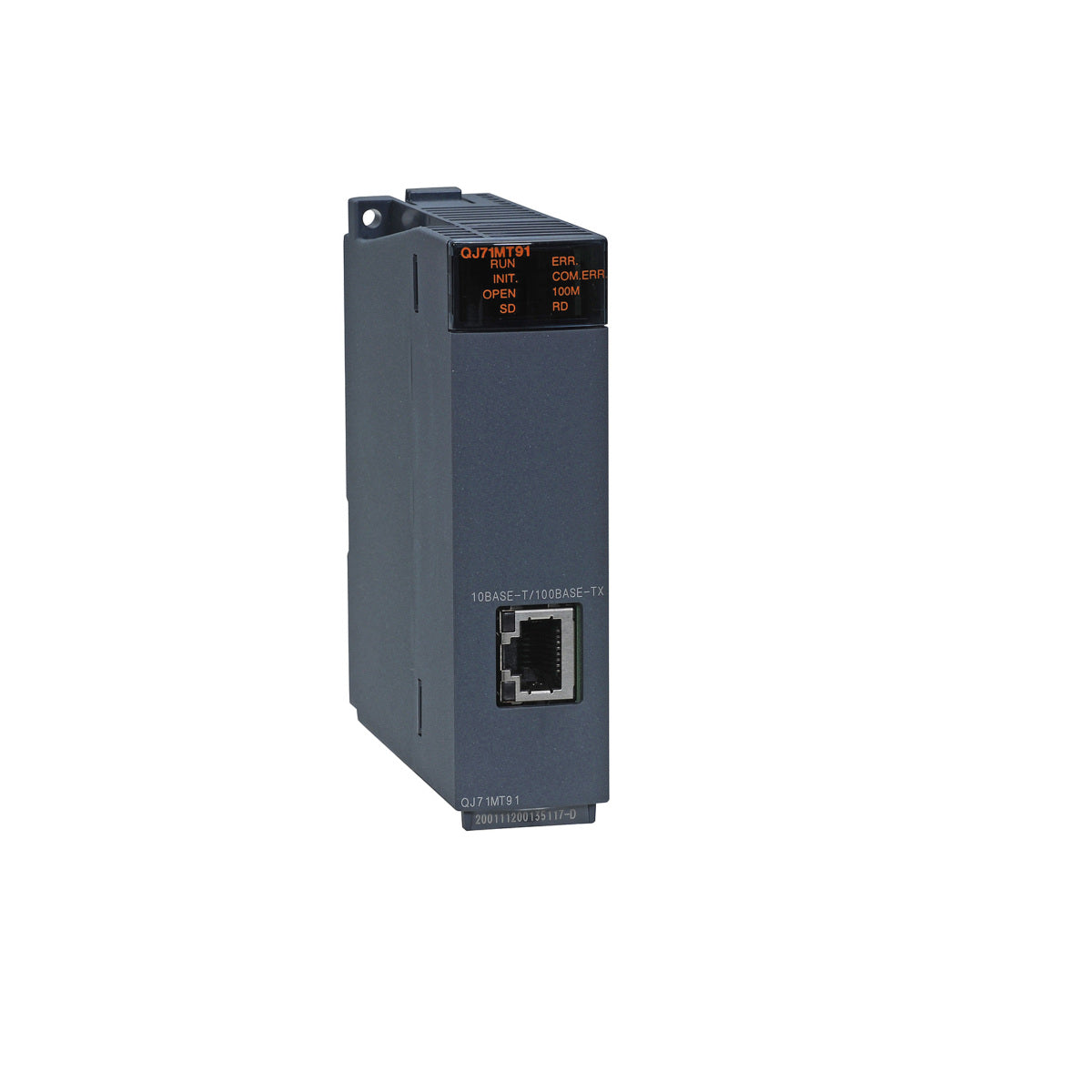

MELSEC-Q Series QJ71MT91
| Transmission specifications - Data transmission speed | 100BASE-TX: 100 Mbps 10BASE-T: 10 Mbps |
| Transmission specifications - Flow control | 100BASE-TX: None(Full-duplex), Back pressure congestion control(Half-duplex) 10BASE-T: Back pressure congestion control(Half-duplex) |
| Transmission specifications - Transmission method | Base band |
| Transmission specifications - Maximum node-to-node distance | 200 m |
| Transmission specifications - Maximum segment length | 100 m |
| Transmission specifications - Number of cascaded connections | Maximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX) |
| Transmission specifications - Maximum number of connections | 64 connections |
| Transmission specifications - Number of routers that can be set | 1 default router + any 8 routers |
| Transmission specifications - Connector applicable to external wiring | RJ45 |
| Master function - Automatic communication function - Number of slaves | 64 slaves |
| Master function - Automatic communication function - Function (for send) | 7 functions |
| Master function - Automatic communication function - Input area size | 4K words |
| Master function - Automatic communication function - Output area size | 4K words |
| Master function - Communication by dedicated instructions - Number of instructions that can be executed concurrently | Up to 8 instructions |
| Master function - Communication by dedicated instructions - Function (for send) | MBRW instruction: 9 functions MBREQ instruction: 19 functions |
| Master function - Communication by dedicated instructions - Input area size | Maximum 253 bytes per instruction |
| Master function - Communication by dedicated instructions - Output area size | Maximum 253 bytes per instruction |
| Slave function - Automatic response function - Function (for receive) | 12 functions |
| Slave function - MODBUS ® device size - Coil | 64K points |
| Slave function - MODBUS ® device size - Input | 64K points |
| Slave function - MODBUS ® device size - Input register | 64K points |
| Slave function - MODBUS ® device size - Holding register | 64K points |
| Slave function - MODBUS ® device size - Extended file register | Maximum 4086K points |
| Slave function - No. of simultaneously acceptable request messages | 64 |
| GX Developer connection function - Number of simultaneously connectable GX Developers | Maximum 8 GX Developers |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.52 A |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 27.4 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.11 kg |
| General specifications | Refer to the general specifications of the CPU module. |
