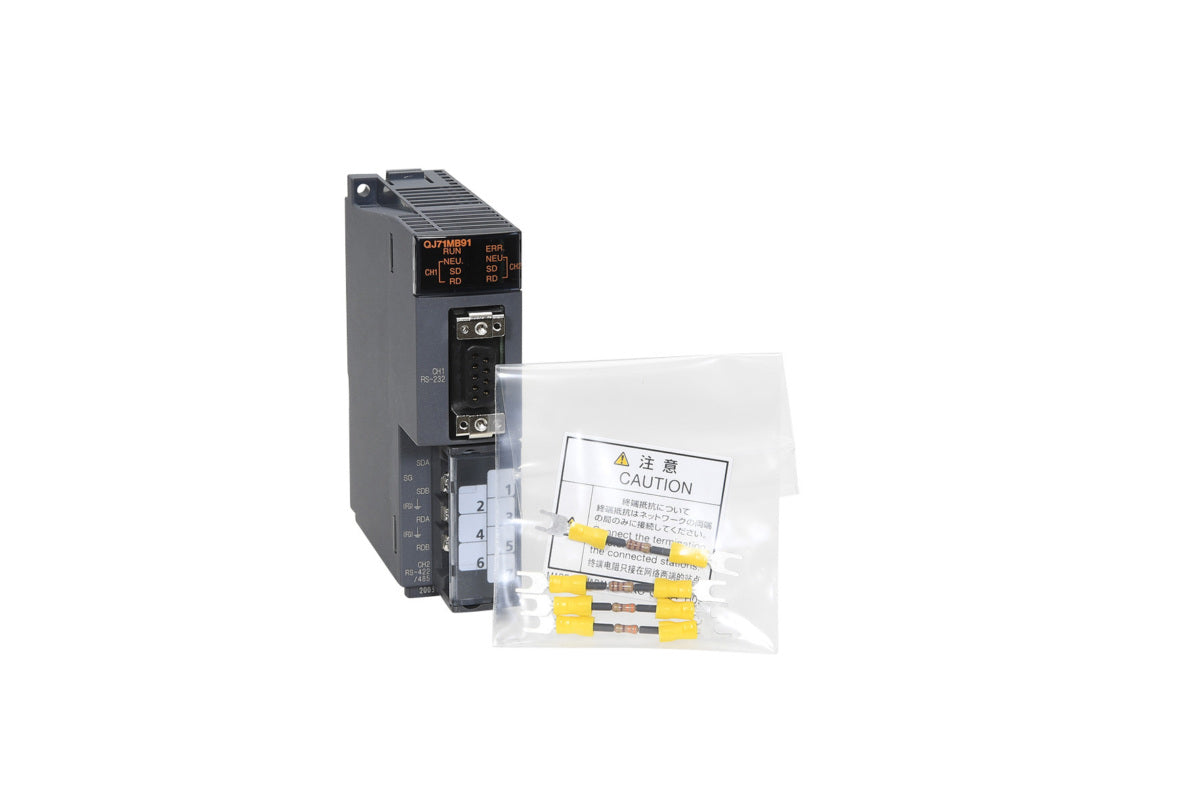

MELSEC-Q Series QJ71MB91
| Transmission specifications - Interface | RS-232: 1 channel RS-422/485: 1 channel |
| Transmission specifications - Transmission speed | 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200 bps • Total transmission speed of two interfaces is available up to 115200 bps. |
| Transmission specifications - Transmission distance - RS-232 | Up to 15 m |
| Transmission specifications - Transmission distance - RS-422/485 | Up to 1200 m (overall distance) |
| Master function - Automatic communication function - Number of slaves | 32 slaves per channel |
| Master function - Automatic communication function - Function (for send) | 7 functions |
| Master function - Automatic communication function - Input area size | 4K words |
| Master function - Automatic communication function - Output area size | 4K words |
| Master function - Communication by dedicated instructions - Number of instructions that can be executed concurrently | 1 per channel |
| Master function - Communication by dedicated instructions - Function (for send) | MBRW instruction: 9 functions MBREQ instruction: 19 functions |
| Master function - Communication by dedicated instructions - Input area size | Maximum 253 bytes per instruction |
| Master function - Communication by dedicated instructions - Output area size | Maximum 253 bytes per instruction |
| Slave function - Automatic response function - Function (for receive) | 17 functions |
| Slave function - MODBUS ® device size - Coil | 64K points |
| Slave function - MODBUS ® device size - Input | 64K points |
| Slave function - MODBUS ® device size - Input register | 64K points |
| Slave function - MODBUS ® device size - Holding register | 64K points |
| Slave function - MODBUS ® device size - Extended file register | Maximum 4086K points |
| Slave function - No. of simultaneously acceptable request messages | 1 request per channel |
| Slave function - Station No. | 1...247 |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.31 A |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 27.4 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.20 kg |
| General specifications | Refer to the general specifications of the CPU module. |
