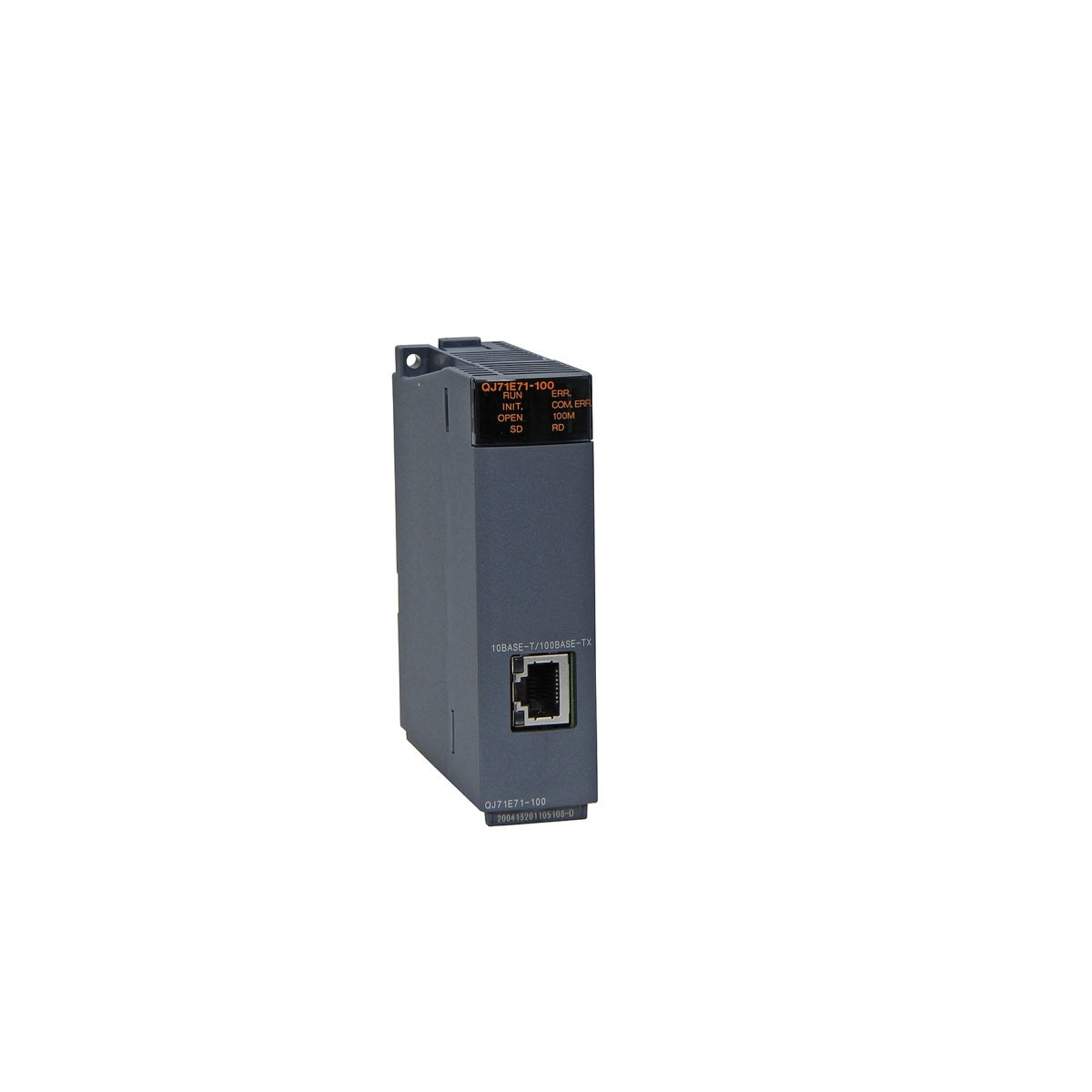

MELSEC-Q Series QJ71E71-100
| Transmission specifications - Type | 100BASE-TX/10BASE-T |
| Transmission specifications - Data transmission speed | 100 Mbps/10 Mbps |
| Transmission specifications - Flow control | 100BASE-TX: None 10BASE-T: Back pressure congestion control(Half-duplex) |
| Transmission specifications - Communication mode | 100BASE-TX: Full-duplex/half-duplex 10BASE-T: Half-duplex |
| Transmission specifications - Interface | RJ45 (Fixed to MDI) |
| Transmission specifications - Transmission method | Base band |
| Transmission specifications - Maximum segment length | 100 m (length between hub and node) |
| Sending/receiving data storage memory - Number of simultaneously open connections | 16 connections (connections usable on a program) |
| Sending/receiving data storage memory - Fixed buffer | 1K words × 16 |
| Sending/receiving data storage memory - Random access buffer | 6K words × 1 |
| Sending/receiving data storage memory - E-mail - Attached file | 6K words × 1 |
| Sending/receiving data storage memory - E-mail - Main text | 960 words × 1 |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.50 A |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 27.4 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.11 kg |
| General specifications | Refer to the general specifications of the CPU module. |
