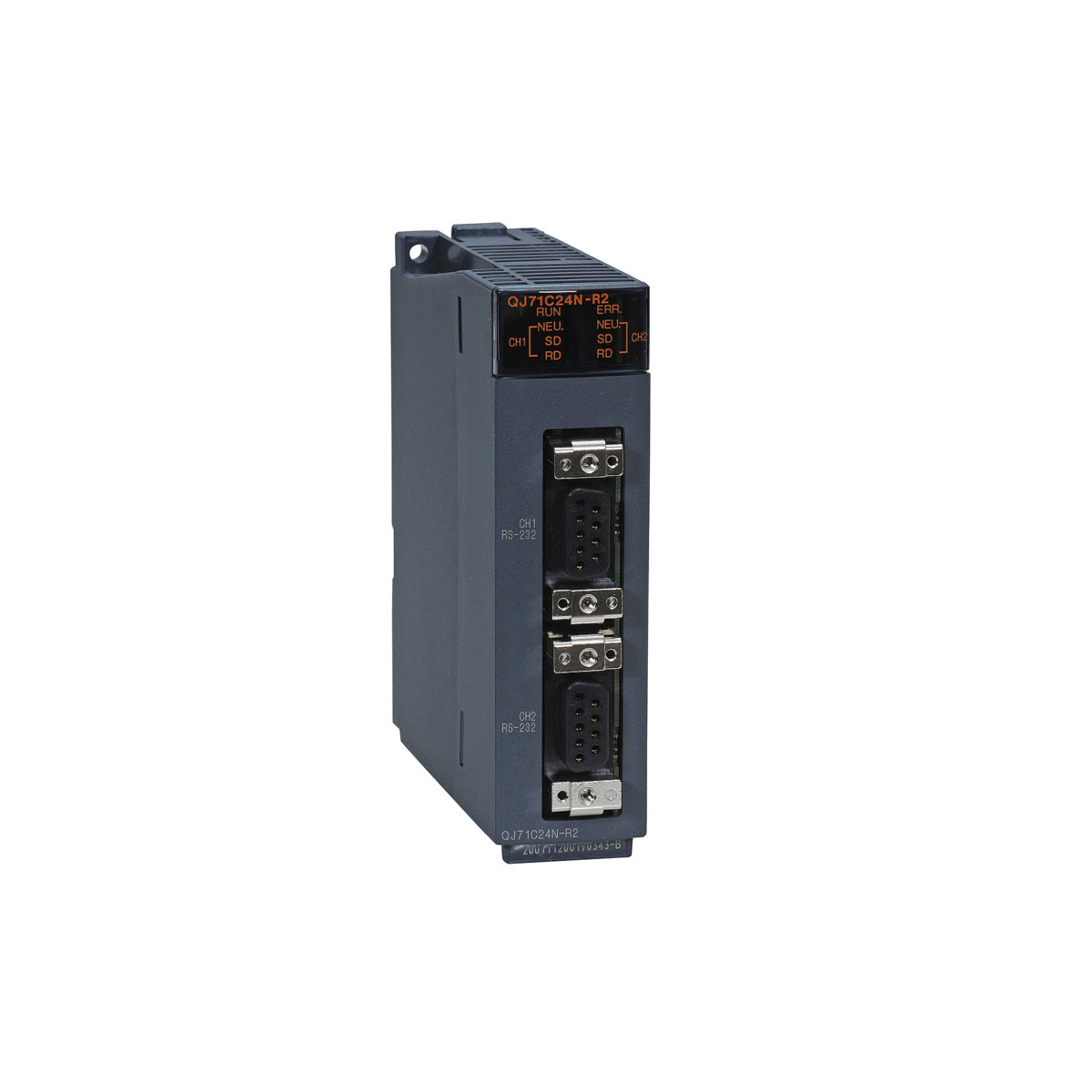

MELSEC-Q Series QJ71C24N-R2
| Interface - CH1 | RS-232-compliance (D-sub 9 pin) |
| Interface - CH2 | RS-232-compliance (D-sub 9 pin) |
| Communication method - Line | Full-duplex/half-duplex communications |
| Communication method - MC protocol communication | Half-duplex communications |
| Communication method - Predefined protocol communication | Full-duplex/half-duplex communications |
| Communication method - Nonprocedural protocol communication | Full-duplex/half-duplex communications |
| Communication method - Bidirectional protocol communication | Full-duplex/half-duplex communications |
| Synchronization method | Start-stop synchronization method |
| Transmission speed | 50, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 230400 bps • Transmission speed 230400 bps is available for only CH1. (Not available for CH2) • Total transmission speed of two interfaces is available up to 230400 bps. • Total transmission speed of two interfaces is a |
| Transmission distance - RS-232 | Maximum 15 m |
| Data format - Start bits | 1 |
| Data format - Data bits | 7/8 |
| Data format - Parity bits | 1 (vertical parity) or none |
| Data format - Stop bits | 1/2 |
| Access cycle - MC protocol communication | Processes one request during the END processing of the CPU module of the station. Number of scans that must be processed/number of link scans depends on the contents of the request. |
| Access cycle - Predefined protocol communication | Sends or receives data when requested with the dedicated instruction. |
| Access cycle - Nonprocedural protocol communication | Sends each time a send request is issued. Can receive at any time. |
| Access cycle - Bidirectional protocol communication | Sends each time a send request is issued. Can receive at any time. |
| Error detection - Parity check | Selected for all protocols and when this check is enabled, ODD or EVEN is selected by a parameter. |
| Error detection - Sum check code | For the MC or bidirectional protocol, selected by a parameter. For the predefined protocol, whether or not a sum check code is needed depends on the selected protocol. For the nonprocedural protocol, selected in the user frame. |
| Transmission control - RS-232 - DTR/DSR control | Enabled |
| Transmission control - RS-232 - RS/CS control | Enabled |
| Transmission control - RS-232 - CD (DCD) signal control | Enabled |
| Transmission control - RS-232 - DC1/DC3 (Xon/Xoff) control | Enabled |
| Transmission control - RS-232 - DC2/DC4 control | Enabled |
| Line configuration for connection (Target device side : CPU module side) - RS-232 | 1:1 |
| Line configuration for data communication (Target device side : CPU module side) - RS-232 - MC protocol communication | 1:1 |
| Line configuration for data communication (Target device side : CPU module side) - RS-232 - Predefined protocol communication | 1:1 |
| Line configuration for data communication (Target device side : CPU module side) - RS-232 - Nonprocedural protocol communication | 1:1 |
| Line configuration for data communication (Target device side : CPU module side) - RS-232 - Bidirectional protocol communication | 1:1 |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.26 A |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 27.4 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.20 kg |
| General specifications | Refer to the general specifications of the CPU module. |
