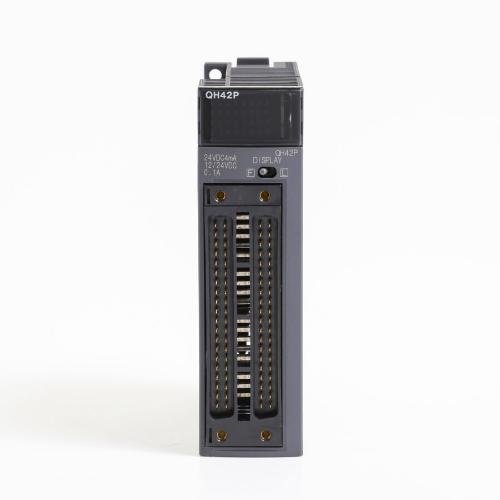

MELSEC-Q Series QH42P
| Input specifications | / DC input (positive common type) |
| Input type | 32 points |
| Number of input points | 24 V DC (+20/-15 %, ripple ratio within 5 %) |
| Rated input voltage | Approx. 4 mA |
| Maximum number of simultaneous input points | 19 V or more/3 mA or more |
| ON voltage/ON current | 11 V or less/1.7 mA or less |
| OFF voltage/OFF current | Approx. 5.6 kΩ |
| Input resistance | 1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less |
| Input response time - OFF to ON | 1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less |
| Input response time - ON to OFF | 32 points/common |
| Input common terminal arrangement | / Transistor output (sink type) |
| Output specifications | 32 points |
| Output type | 12...24 V DC (+20/-15 %) |
| Number of output points | 0.1 A/point, 2 A/common |
| Rated load voltage | 0.7 A, 10 ms or less |
| Maximum load current | 0.1 mA or less |
| Maximum inrush current | 0.1 V DC (TYP.) 0.1 A, 0.2 V DC (MAX.) 0.1 A |
| Leakage current at OFF | 1 ms or less |
| Maximum voltage drop at ON | 1 ms or less (rated load, resistive load) |
| Output response time - OFF to ON | Zener diode |
| Output response time - ON to OFF | None |
| Surge suppressor | Available |
| Fuse | Available |
| Protection function - Overheat protection function | 12...24 V DC (+20/-15 %) (ripple ratio within 5 %) |
| Protection function - Overload protection function | Maximum 15 mA/common (at 24 V DC and all points ON) |
| External power supply - Voltage | 32 points/common |
| External power supply - Current | / Photocoupler |
| Output common terminal arrangement | 560 V AC rms/3 cycles (altitude 2000 m) |
| Common specifications | 10 MΩ or higher by insulation resistance tester |
| Isolation method | IP2X |
| Dielectric withstand voltage | ON indication (LED), 32 point switch-over using switch |
| Insulation resistance | 40-pin connector × 2 |
| Protection degree | A6CON1, A6CON2, A6CON3, A6CON4 (sold separately) |
| Operation indication | 32 points (I/O assignment: I/O combined 32 points) |
| External interface - | 130 mA (TYP. all points ON) |
| External interface - Applicable connector | 98 mm |
| Number of occupied I/O points | 27.4 mm |
| Internal current consumption (5 V DC) | 90 mm |
| External dimensions - Height | 0.20 kg |
| General specifications | Refer to the general specifications of the CPU module. |
