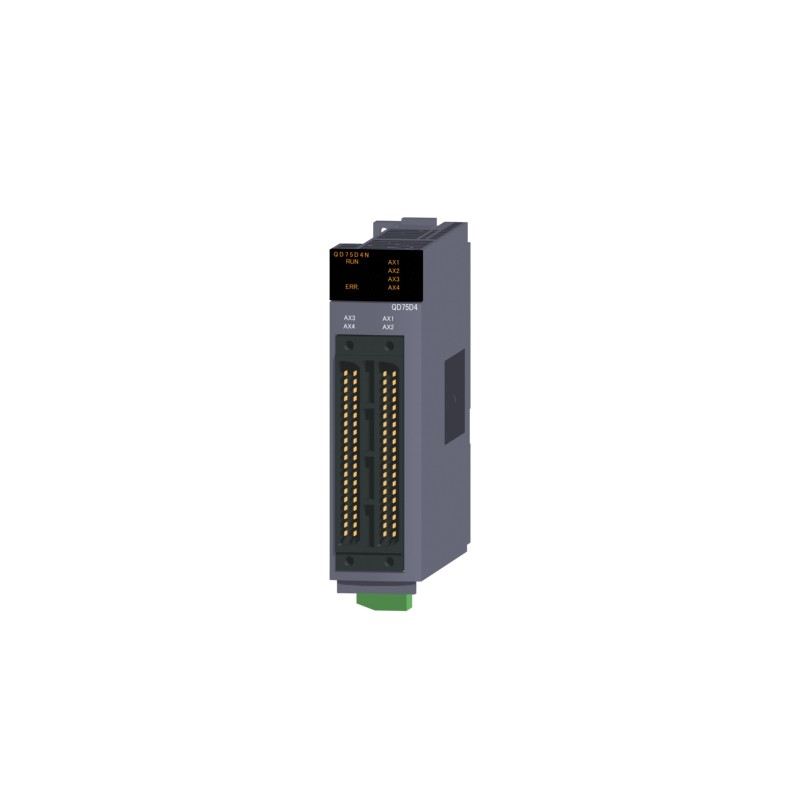

MELSEC-Q Series QD75D4N
| No. of control axes | 4 axes |
| Interpolation function | 2-, 3-, or 4-axis linear interpolation 2-axis circular interpolation 3-axis helical interpolation |
| Control method | PTP (Point To Point) control, path control (line, arc, and helical can be set), speed control, speed-position switching control, position-speed switching control |
| Control unit | mm, inch, degree, pulse |
| Positioning data | 600 data /axis |
| Backup | Parameters, positioning data, and block start data can be saved on flash ROM (battery-less backup). |
| Positioning - Positioning system - PTP control | Incremental system/absolute system |
| Positioning - Positioning system - Speed-position switching control | Incremental system/absolute system |
| Positioning - Positioning system - Position-speed switching control | Incremental system |
| Positioning - Positioning system - Path control | Incremental system/absolute system |
| Positioning - Positioning range - In absolute system | ･ -214748364.8...214748364.7 µm ･ -21474.83648...21474.83647 inch ･ 0...359.99999 degree ･ -2147483648...2147483647 pulse |
| Positioning - Positioning range - In incremental system | ･ -214748364.8...214748364.7 µm ･ -21474.83648...21474.83647 inch ･ -21474.83648...21474.83647 degree ･ -2147483648...2147483647 pulse |
| Positioning - Positioning range - In speed-position switching control (INC mode) / position-speed switching control | ･ 0...214748364.7 µm ･ 0...21474.83647 inch ･ 0...21474.83647 degree ･ 0...2147483647 pulse |
| Positioning - Positioning range - In speed-position switching control (ABS mode) | ･ 0...359.99999 degree |
| Positioning - Speed command | 0.01...20000000.00 mm/min 0.001...2000000.000 inch/min 0.001...2000000.000 degree/min 1...4000000 pulse/s |
| Positioning - Acceleration/deceleration process | Trapezoidal acceleration/deceleration, S-curve acceleration/deceleration |
| Positioning - Acceleration/deceleration time | 1...8388608 ms Four patterns can be set for each of acceleration time and deceleration time |
| Positioning - Sudden stop deceleration time | 1...8388608 ms |
| Starting time - 1-axis linear control | 1.5 ms |
| Starting time - 1-axis speed control | 1.5 ms |
| Starting time - 2-axis linear interpolation control (Composite speed) | 1.5 ms |
| Starting time - 2-axis linear interpolation control (Reference axis speed) | 1.5 ms |
| Starting time - 2-axis circular interpolation control | 2.0 ms |
| Starting time - 2-axis speed control | 1.5 ms |
| Starting time - 3-axis linear interpolation control (Composite speed) | 1.7 ms |
| Starting time - 3-axis linear interpolation control (Reference axis speed) | 1.7 ms |
| Starting time - 3-axis helical interpolation control | 2.6 ms |
| Starting time - 3-axis speed control | 1.7 ms |
| Starting time - 4-axis linear interpolation control | 1.8 ms |
| Starting time - 4-axis speed control | 1.8 ms |
| Starting time - Factors in starting time extension | The following times will be added to the starting time in the described conditions: • S-curve acceleration/deceleration is selected: 0.1 ms • Other axis is in operation: 0.5 ms • During continuous positioning control: 0.3 ms • During continuous path control: 0.3 ms |
| Pulse output system | Differential driver output system |
| Maximum output pulse | 4M pulse/s |
| Maximum connection distance between servos | 10 m |
| External interface - | 40-pin connector × 2, differential driver common terminal |
| External interface - Applicable connector | A6CON1, A6CON2, A6CON4 (sold separately) |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.66 A |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 27.4 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.16 kg |
| General specifications | Refer to the general specifications of the CPU module. |
