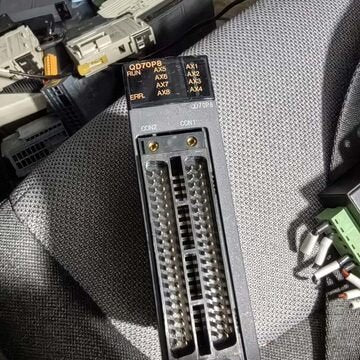

MELSEC-Q Series QD70P8
| No. of control axes | 8 axes |
| Interpolation function | None |
| Control method | PTP (Point To Point) control, path control (linear only), speed-position switching control |
| Control unit | pulse |
| Positioning data | 10 data /axis |
| Data backup | None |
| Positioning - Positioning system - PTP control | Incremental system/absolute system |
| Positioning - Positioning system - Speed-position switching control | Incremental system |
| Positioning - Positioning system - Path control | Incremental system/absolute system |
| Positioning - Positioning range - In absolute system | ･ -2147483648...2147483647 pulse |
| Positioning - Positioning range - In incremental system | ･ -2147483648...2147483647 pulse |
| Positioning - Positioning range - Speed-position switching control | ･ 0...2147483647 pulse |
| Positioning - Speed command | 0...200000 pulse/s |
| Positioning - Acceleration/deceleration process | Trapezoidal acceleration/deceleration |
| Positioning - Acceleration/deceleration time | 0...32767 ms |
| Starting time - Position control - 1-axis start | 0.1 ms |
| Starting time - Position control - 8-axes simultaneous start | 0.4 ms |
| Pulse output system | Open collector output system |
| Maximum output pulse | 200k pulse/s |
| Maximum connection distance between drive units | 2 m |
| External power supply - Voltage | 24 V DC |
| External power supply - Current | 0.12 A |
| External interface - | 40-pin connector × 2 |
| External interface - Applicable connector | A6CON1, A6CON2, A6CON4 (sold separately) |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.74 A |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 27.4 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.17 kg |
| General specifications | Refer to the general specifications of the CPU module. |
