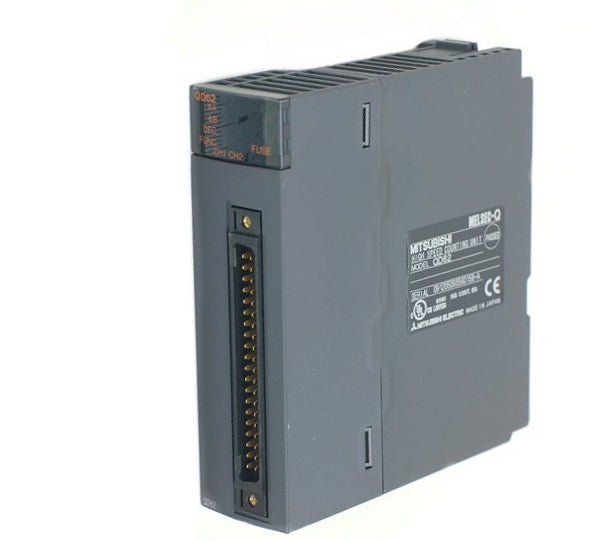

MELSEC-Q Series QD62
| Number of channels | 2 channels |
| Counting speed switch settings | 200k (100k...200k pps), 100k (10k...100k pps), 10k (10k pps or less) |
| Count input signal - Phase | 1-phase input (1 multiple/2 multiple), 2-phase input (1 multiple/2 multiple/4 multiple), CW/CCW input |
| Count input signal - Signal level (øA, øB) | 5/12/24 V DC 2...5 mA |
| Counter - Counting speed (maximum) | 200k pulse/s, 100k pulse/s, 10k pulse/s |
| Counter - Counting range | 32-bit signed binary values (-2147483648...2147483647) |
| Counter - Type | UP/DOWN Preset counter + Ring counter function |
| Counter - Minimum count pulse width (Duty ratio 50 %) - | 200k pulse/s: 5 µs (ON/OFF 2.5 µs), Minimum phase difference for 2-phase input: 1.25 µs 100k pulse/s: 10 µs (ON/OFF 5 µs), Minimum phase difference for 2-phase input: 2.5 µs 10k pulse/s: 100 µs (ON/OFF 50 µs), Minimum phase difference for 2-phase input: 25 µs |
| Coincidence detection - Comparison range | 32-bit signed binary |
| Coincidence detection - Comparison result | Count value" id="C_1_10_1"> Setting value Setting value = Count value, Setting value > Count value |
| External input - Preset | 5/12/24 V DC 2...5 mA |
| External input - Function start | 5/12/24 V DC 2...5 mA |
| External output - Coincidence output | Transistor (sink type) output: 2 points/channel 12/24 V DC 0.5 A/point, 2 A/common |
| External interface - | 40-pin connector |
| External interface - Applicable connector | A6CON1, A6CON2, A6CON3, A6CON4 (sold separately) |
| Number of occupied I/O points | 16 points (I/O assignment: Intelligent 16 points) |
| Internal current consumption (5 V DC) | 0.30 A |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 27.4 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.11 kg |
| General specifications | Refer to the general specifications of the CPU module. |
