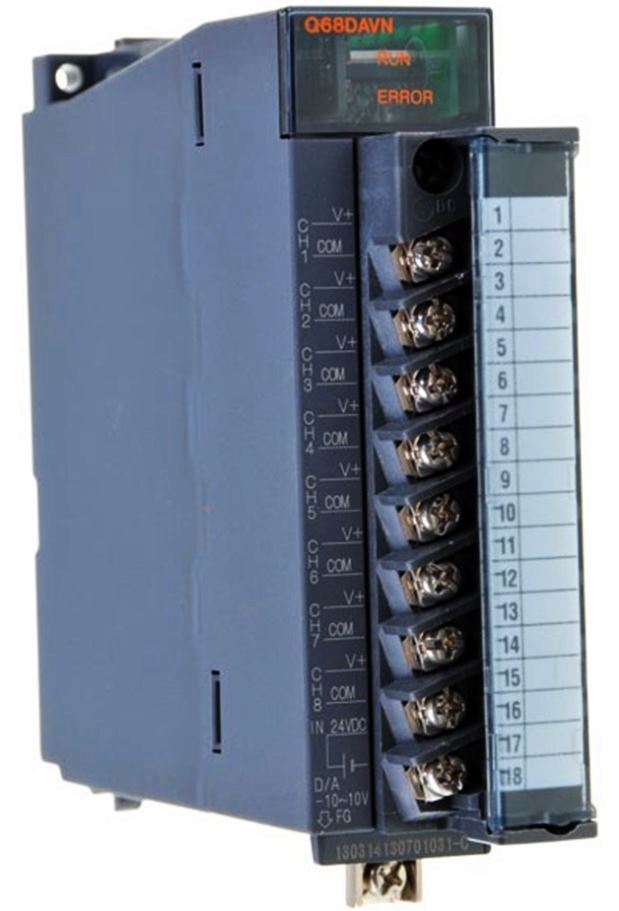

MELSEC-Q Series Q68DAVN
| Output specifications | / 8 points (8 channels) |
| Number of analog output points | Normal resolution mode: -4096...+4095 High resolution mode: -12288...+12287, -16384...+16383 |
| Digital input | -10...+10 V DC (external load resistance 1 kΩ...1 MΩ) |
| Analog output - Voltage | Digital input value (maximum resolution) |
| I/O characteristics, resolution - Output range | Normal resolution mode: 0...4000 (1.25 mV) High resolution mode: 0...12000 (0.416 mV) |
| I/O characteristics, resolution - Voltage output - 0...5 V | Normal resolution mode: 0...4000 (1.0 mV) High resolution mode: 0...12000 (0.333 mV) |
| I/O characteristics, resolution - Voltage output - 1...5 V | Normal resolution mode: -4000...4000 (2.5 mV) High resolution mode: -16000...16000 (0.625 mV) |
| I/O characteristics, resolution - Voltage output - -10...10 V | Normal resolution mode: -4000...4000 (0.75 mV) High resolution mode: -12000...12000 (0.333 mV) |
| I/O characteristics, resolution - Voltage output - User range setting | Within ±0.1 % |
| Accuracy (accuracy relative to maximum value of analog output value) - Ambient temperature: 25±5 ﾟC | Within ±0.3 % |
| Accuracy (accuracy relative to maximum value of analog output value) - Ambient temperature: 0...55 ﾟC | 80 µs/channel |
| D/A conversion speed | ±12 V |
| Absolute maximum output - Voltage | Protected |
| Output short protection | / Between I/O terminals and programmable controller power supply: Photocoupler Between analog output channels: Non-isolation Between external power supply and analog output: Transformer |
| Common specifications | Between I/O terminals and programmable controller power supply, between external power supply and analog output: 500 V AC for 1 minute |
| Isolation method | Between I/O terminals and programmable controller power supply, between external power supply and analog output: 500 V DC, 20 MΩ or higher |
| Dielectric withstand voltage | 24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower) |
| Insulation resistance | 0.20 A (inrush current: 4.7 A, 280 µs or lower) |
| External power supply - Voltage | 18-point terminal block (M3 screw), FG terminal |
| External power supply - Current | 16 points (I/O assignment: Intelligent 16 points) |
| External interface - | 0.38 A |
| Number of occupied I/O points | 98 mm |
| Internal current consumption (5 V DC) | 27.4 mm |
| External dimensions - Height | 112 mm |
| External dimensions - Width | 0.20 kg |
| General specifications | Refer to the general specifications of the CPU module. |
