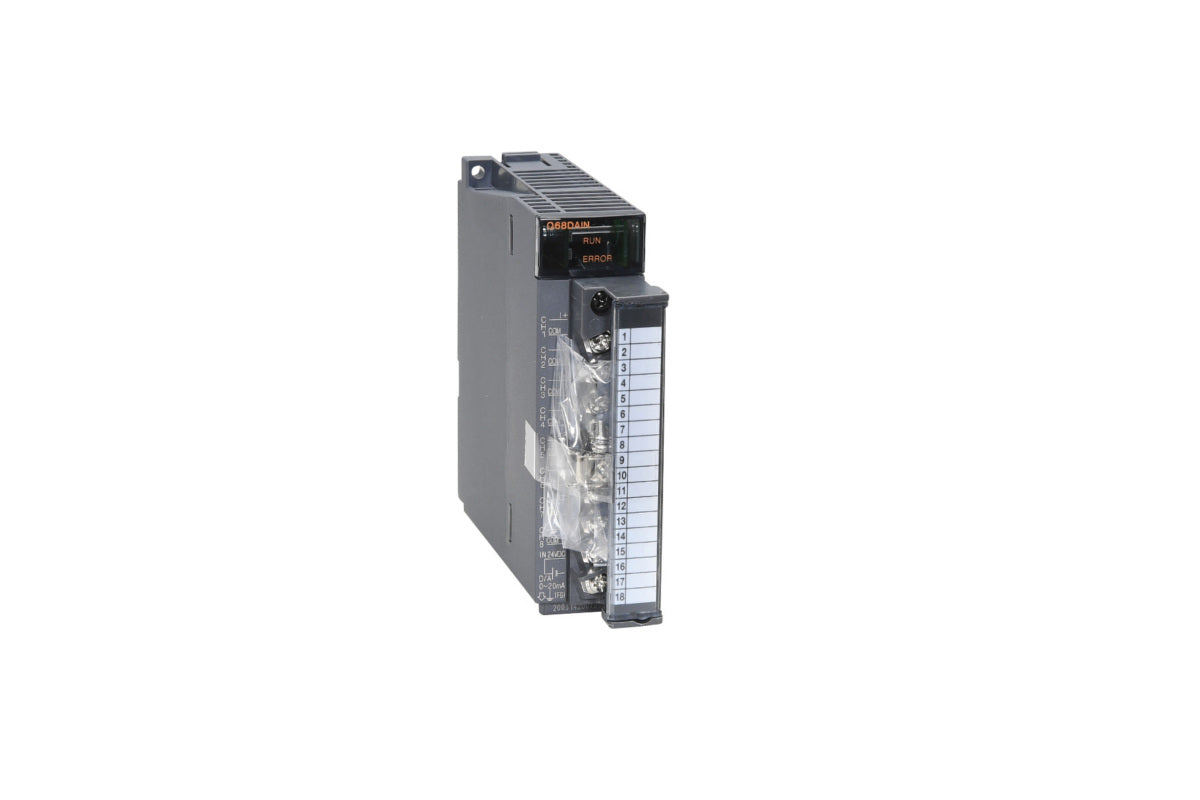

MELSEC-Q Series Q68DAIN
| Output specifications | / 8 points (8 channels) |
| Number of analog output points | Normal resolution mode: -4096...+4095 High resolution mode: -12288...+12287, -16384...+16383 |
| Digital input | 0...20 mA DC (external load resistance 0...600 Ω) |
| Analog output - Current | Digital input value (maximum resolution) |
| I/O characteristics, resolution - Output range | Normal resolution mode: 0...4000 (5 µA) High resolution mode: 0...12000 (1.66 µA) |
| I/O characteristics, resolution - Current output - 0...20 mA | Normal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA) |
| I/O characteristics, resolution - Current output - 4...20 mA | Normal resolution mode: -4000...4000 (1.5 µA) High resolution mode: -12000...12000 (0.83 µA) |
| I/O characteristics, resolution - Current output - User range setting | Within ±0.1 % |
| Accuracy (accuracy relative to maximum value of analog output value) - Ambient temperature: 25±5 ﾟC | Within ±0.3 % |
| Accuracy (accuracy relative to maximum value of analog output value) - Ambient temperature: 0...55 ﾟC | 80 µs/channel |
| D/A conversion speed | 21 mA |
| Absolute maximum output - Current | Protected |
| Output short protection | / Between I/O terminals and programmable controller power supply: Photocoupler Between analog output channels: Non-isolation Between external power supply and analog output: Transformer |
| Common specifications | Between I/O terminals and programmable controller power supply, between external power supply and analog output: 500 V AC for 1 minute |
| Isolation method | Between I/O terminals and programmable controller power supply, between external power supply and analog output: 500 V DC, 20 MΩ or higher |
| Dielectric withstand voltage | 24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower) |
| Insulation resistance | 0.27 A (inrush current: 4.7 A, 280 µs or lower) |
| External power supply - Voltage | 18-point terminal block (M3 screw), FG terminal |
| External power supply - Current | 16 points (I/O assignment: Intelligent 16 points) |
| External interface - | 0.38 A |
| Number of occupied I/O points | 98 mm |
| Internal current consumption (5 V DC) | 27.4 mm |
| External dimensions - Height | 112 mm |
| External dimensions - Width | 0.20 kg |
| General specifications | Refer to the general specifications of the CPU module. |
