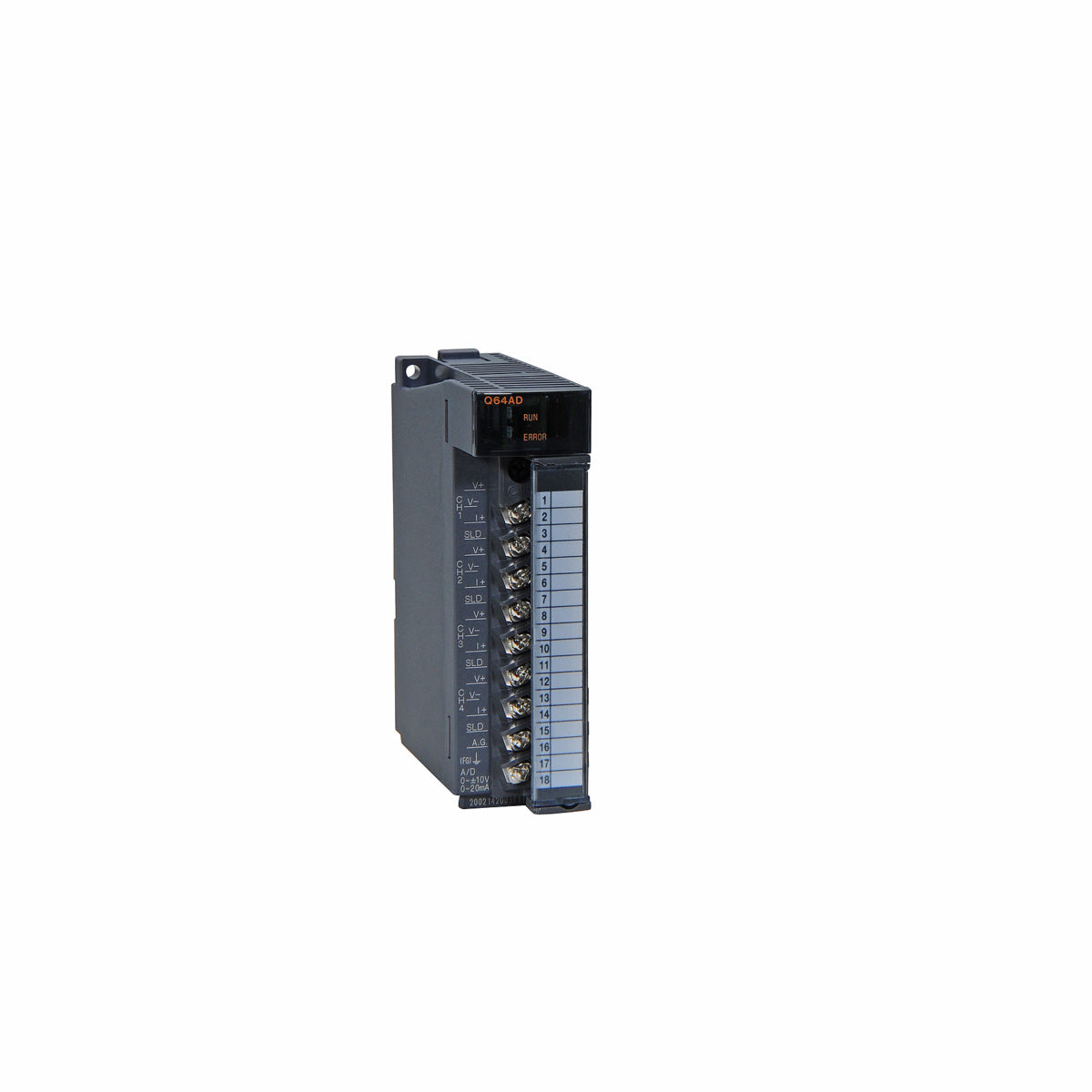

MELSEC-Q Series Q64AD
| Input specifications | / 4 points (4 channels) |
| Number of analog input points | -10...+10 V DC (input resistance 1 MΩ) |
| Analog input - Voltage | 0...20 mA DC (input resistance 250 Ω) |
| Analog input - Current | Normal resolution mode: -4096...+4095 High resolution mode: -12288...+12287, -16384...+16383 |
| Digital output - | Digital output value (maximum resolution) |
| I/O characteristics, resolution - Input range | Normal resolution mode: 0...4000 (2.5 mV) High resolution mode: 0...16000 (0.625 mV) |
| I/O characteristics, resolution - Voltage input - 0...10 V | Normal resolution mode: 0...4000 (1.25 mV) High resolution mode: 0...12000 (0.416 mV) |
| I/O characteristics, resolution - Voltage input - 0...5 V | Normal resolution mode: 0...4000 (1.0 mV) High resolution mode: 0...12000 (0.333 mV) |
| I/O characteristics, resolution - Voltage input - 1...5 V | Normal resolution mode: -4000...4000 (2.5 mV) High resolution mode: -16000...16000 (0.625 mV) |
| I/O characteristics, resolution - Voltage input - -10...10 V | Normal resolution mode: -4000...4000 (0.375 mV) High resolution mode: -12000...12000 (0.333 mV) |
| I/O characteristics, resolution - Voltage input - User range setting | Normal resolution mode: 0...4000 (5 µA) High resolution mode: 0...12000 (1.66 µA) |
| I/O characteristics, resolution - Current input - 0...20 mA | Normal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA) |
| I/O characteristics, resolution - Current input - 4...20 mA | Normal resolution mode: -4000...4000 (1.37 µA) High resolution mode: -12000...12000 (1.33 µA) |
| I/O characteristics, resolution - Current input - User range setting | Within ±0.1 % |
| Accuracy (accuracy relative to maximum value of the digital output value) - Ambient temperature: 25±5 ﾟC | With temperature drift correction: within ±0.3 % Without temperature drift correction: within ±0.4 % |
| A/D conversion speed | ±15 V |
| Absolute maximum input - Voltage | ±30 mA |
| Absolute maximum input - Current | / Between I/O terminals and programmable controller power supply: Photocoupler Between analog input channels: Non-isolation |
| Common specifications | Between I/O terminals and programmable controller power supply: 500 V AC for 1 minute |
| Isolation method | Between I/O terminals and programmable controller power supply: 500 V DC 20 MΩ or higher |
| Dielectric withstand voltage | 18-point terminal block (M3 screw) |
| Insulation resistance | 16 points (I/O assignment: Intelligent 16 points) |
| External interface - | 0.63 A |
| Number of occupied I/O points | 98 mm |
| Internal current consumption (5 V DC) | 27.4 mm |
| External dimensions - Height | 90 mm |
| External dimensions - Width | 0.18 kg |
| General specifications | Refer to the general specifications of the CPU module. |
